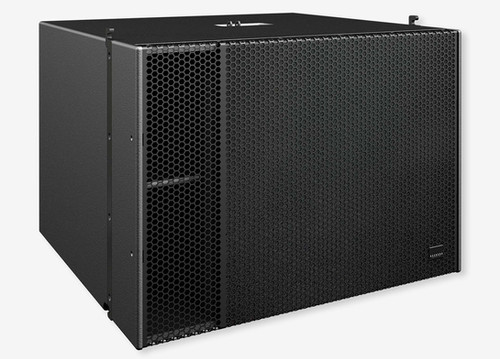

Acoustic Line - C Sub Passive Bass Extension

Bass extension for the C 15 and C 30 Constant Curvature Line Array. Integrated and visually unobtrusive flying system for flown array applications in fixed installations. The high-performance 18“ neodymium driver in combination with the optimized bass reflex technology results in a particularly impulse-frequent and deep bass reproduction. SPECIFICATIONS Speaker Components 18“ Nd (4,5“ VC) Description Passive Bass Extension Power AES / Peak 1500 W / 4500 W Impedance nominal 8 Ω SPL 1 W / Peak @ 1 m 101 dB / 138 dB Usable Range - 6 dB 30 Hz - 200 Hz Tuning Frequency excursion minimum 36 Hz Connectors 3 x Speakon NL4 in/out Coding (2x): 1+/- loop thru, 2+/- Sub Coding (1x): 1+/- Sub, 2+/- loop thru Rigging / Fittings Rigging connectors for use w/ C15/C30 on C-Series flying frame Weight 46 kg Size height x width x depth 52,0 x 70,0 x 70,0 cm
