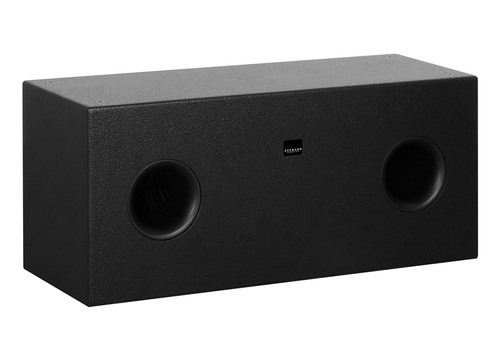

Acoustic Line - A1 Sub Passive Bass Extension 12"

Subwoofer extension for the A 1. The 12” long-excursion chassis utilises a double-bandpass cabinet, ensuring very deep and punchy bass response. The cabinet features 8 x M8 mounting points for installation. SPECIFICATIONS A 1 Sub Speaker Components 12“ Description Passive Bass Extension Power AES / Peak 500 W / 1500 W Impedance nominal 8 Ω SPL 1 W / Peak @ 1 m 100 dB / 132 dB Usable Range 35 Hz - 150 Hz (-6 dB) Tuning Frequency excursion minimum 38 Hz / 80 Hz Connectors 2 x Neutrik Speakon NL4MP in/out Coding: 1+/- loop thru, 2+/- Sub Handles - - - Rigging / Fittings 8 x M8 (M20 on top on request) Weight 17,5 kg Size height x width x depth 35,0 x 80,0 x 30,0 cm
