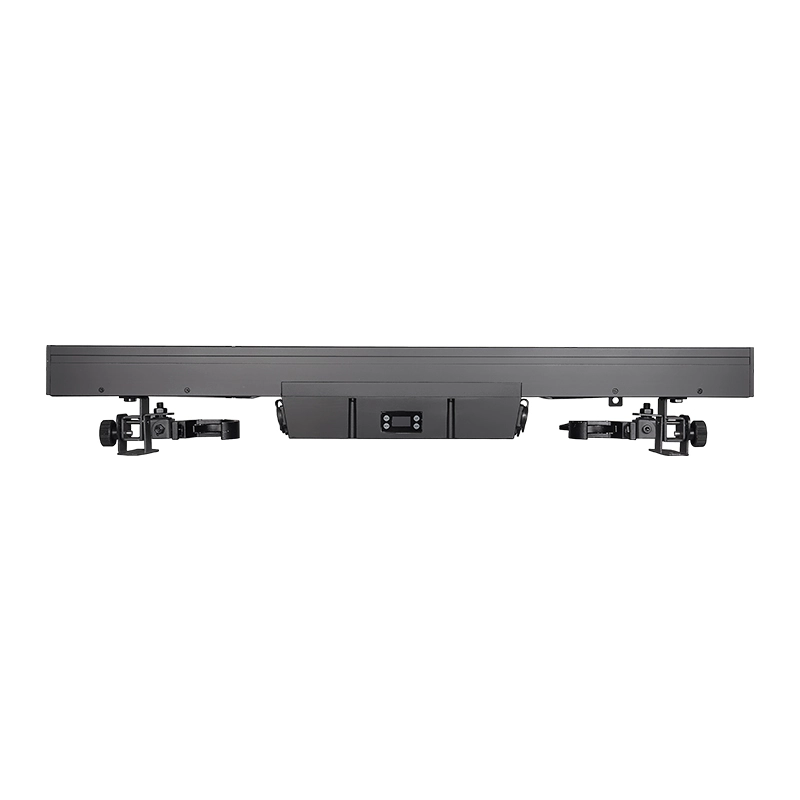

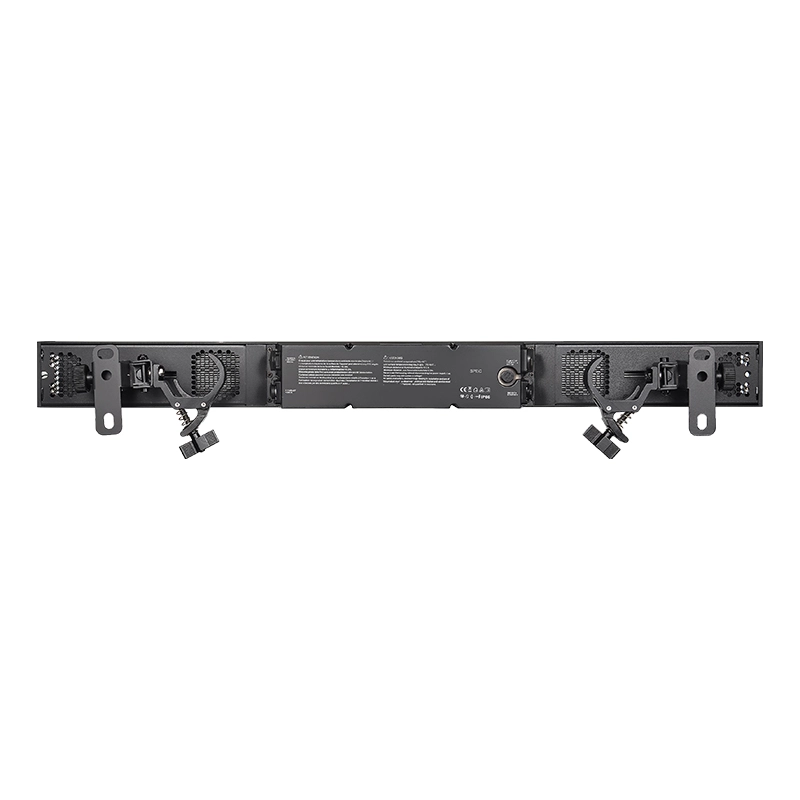

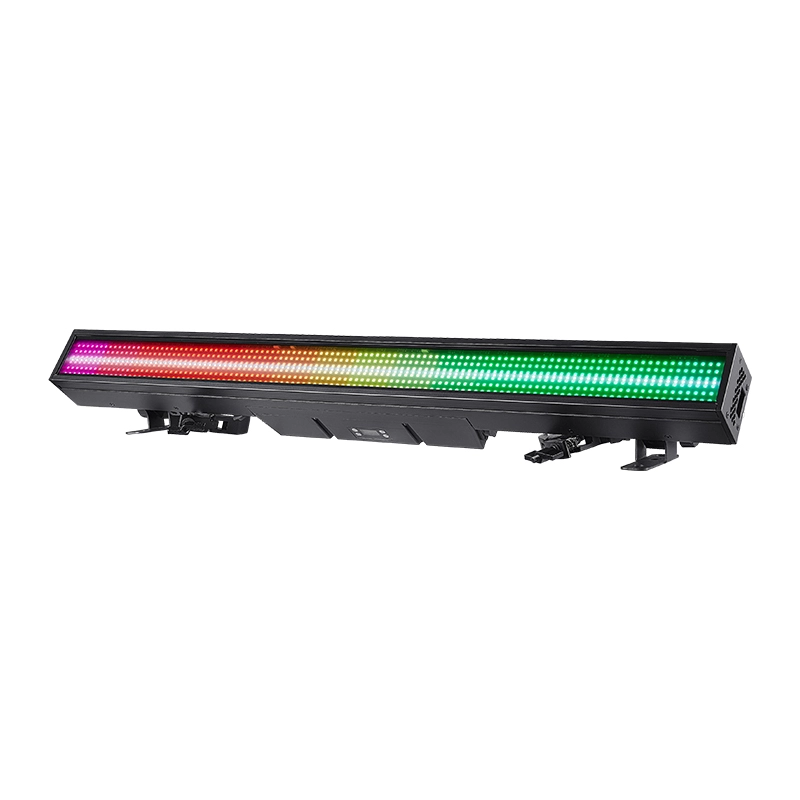

PIXEL LINE IP
Fiyat için iletişime geçiniz
WhatsApp’tan Bilgi AlPixel Line IP fixture integrates three core functions: beam effect, full wash and adjustable strobe effects, equipped with electronic frost to soften light output for diverse scene needs. It comes with dedicated jointing parts for seamless multi-unit splicing to form long light bars. Identical to Acme Pixel Line IP in optical performance and structural design, it boasts IP65 waterproof rating. Robust against dust and splashing water, it suits indoor and outdoor live shows, concerts and event sta
Ürün açıklaması
Pixel Line IP fixture integrates three core functions: beam effect, full wash and adjustable strobe effects, equipped with electronic frost to soften light output for diverse scene needs. It comes with dedicated jointing parts for seamless multi-unit splicing to form long light bars.
Identical to Acme Pixel Line IP in optical performance and structural design, it boasts IP65 waterproof rating. Robust against dust and splashing water, it suits indoor and outdoor live shows, concerts and event stages with stable long-hour operation.
✦ 672x0.5W RGB LED
✦ 112x 3W CW LED
✦ RGB Beam Angle:101 degree
✦ CW Beam Angle:108 degree
✦ RGB Field Angle: 149 degree
✦ CW Field Angle: 152 degree
✦ Advanced optical design for seamless effects
✦ SMART Glass technology for DMX controllable frost effects
Teknik Özellikler
- OPTIC
- Light Sources:
- 672 x 0.5W RGB LED
- 112 x 3W CW LED
- RGB Beam Angle: 101°
- CW Beam Angle: 108°
- RGB Field Angle: 149°
- CW Field Angle: 152°
- DYNAMIC EFFECT
- White tube+RGB Background
- Electronic Diffusion
- AM Pixel Line IP
- Advanced optical design for seamless effects
- SMART Glass technology for DMX controllable frost effects
- Protection rating: IP65
- ELECTRICAL AND CONTROL
- Advanced optical design for seamless effects
- SMART Glass technology for DMX controllable frost effects
- Control:
- 4-Button touch panel
- Display: OLED display
- Protocols: DMX512, RDM, Art-Net, sACN
- DMX Protocol modes: 11
- Control channels: 7/15/21/39/112/17/33/65/68/117/70
- Firmware Upgrade: Upgrade via DMX link
- Electrical and Connectors:
- Input Voltage Range: 100-240VAC, 50/60Hz
- Power consumption: 420W
- Power In/Out: Waterproof connections (TRUE1 type)
- Data In/Out: Waterproof 3-pin or 5-pin XLR connectors
- BODY
- Horizontal or vertical mounting
- Universal operating position
- Safety cable mounting point
- User Manual
- Power Cable (with TRUE1 type connector)
- 2 Omega Brackets (optional with 2 x foldable fixed clamps)
- NW: 8.3kg(Not including clamps)
- Carton box 1in1:108*19*24cm/ 10KG
- Flight case 6in1:116*73*45cm /86KG
- Fixture size: 100*124*90mm(L*W*H)
- DIMENSIONS(MM)
