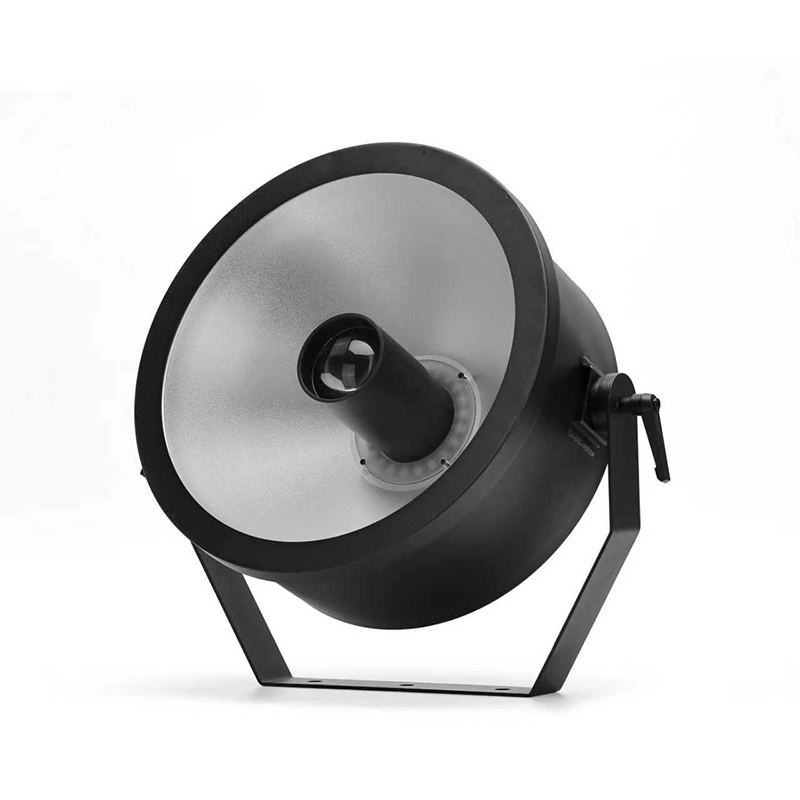

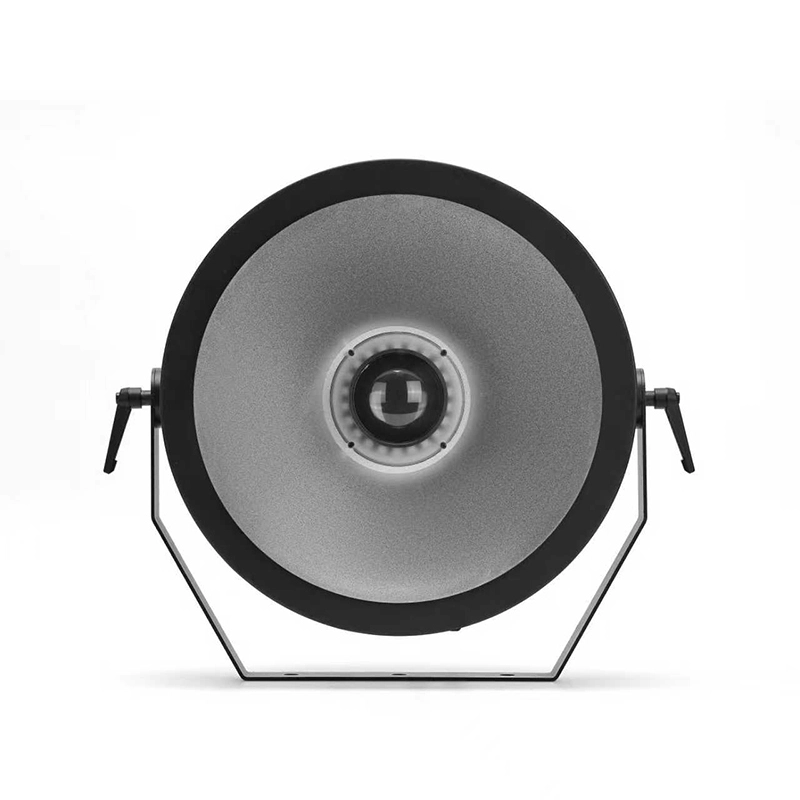

OMNI PATT IP
Fiyat için iletişime geçiniz
WhatsApp’tan Bilgi AlThe IP65-rated OMNI PATT IP combines beam and wash lighting effects seamlessly. Configured with one 60W RGBW beam lamp and 22×20W RGBWAL LEDs, it has a 3° narrow beam, 85° wide spot and 1800-8500K adjustable CCT. It supports DMX signal upgrade and is fitted with an OLED control display. Smart temperature prevention protects LED components. Constructed from galvanized steel and aluminium alloy with an alloy heat sink and silent fan, it realizes outstanding heat dissipation for all outdoor lightin
Ürün açıklaması
The IP65-rated OMNI PATT IP combines beam and wash lighting effects seamlessly. Configured with one 60W RGBW beam lamp and 22×20W RGBWAL LEDs, it has a 3° narrow beam, 85° wide spot and 1800-8500K adjustable CCT. It supports DMX signal upgrade and is fitted with an OLED control display. Smart temperature prevention protects LED components. Constructed from galvanized steel and aluminium alloy with an alloy heat sink and silent fan, it realizes outstanding heat dissipation for all outdoor lighting projects.
✦ 60W RGBW BEAM + 22*20W RGBWAL LED
✦ Beam angle:3°
✦ Spot angle:85°
✦ Color temperature: 1800~8500 K
✦ Beam diameter: 75mm
✦ Patt diameter: 330mm
✦ OLED display operation panel
✦ DMX signal software update
✦ Intelligent temperature protection to ensure the service life of LED
✦ Galvanized sheet + aluminum alloy structure
✦ Aluminum alloy heat sink + silent fan
✦ IP65
Teknik Özellikler
- OPTIC
- 60W RGBW BEAM + 22*20W RGBWAL LED
- Beam angle: 3°
- Spot angle: 85°
- Color temperature: 1800~8500 K
- Average life: 50000 H
- Beam diameter: 75mm
- Patt diameter: 330mm
- ELECTRICAL AND CONTROL
- AC110V ~ 240V 50/60Hz
- Rated power: 450 W
- Control channel: 7 modes (8CH/16CH/24CH/16 CCT CH/21 CCT CH/16CH)
- Protocol: standard DMX512 protocol, RDM protocol
- Data connection: 3-core XLR input/output
- Display: OLED display operation panel
- Convenient and fast upgrade through DMX signal software update
- Intelligent temperature protection to ensure the service life of LED
- DYNAMIC EFFECT
- Fast strobe: 1 ~ 25Hz
- LED refresh frequency: 1K~ 25KHz
- BODY
- Galvanized sheet + aluminum alloy structure
- Aluminum alloy heat sink + silent fan
- Protection level: IP65
- Working environment: -40℃ ~ 45℃
- Startup environment: -20℃ ~ 45℃
- DIMENSIONS AND WEIGHT
- Dimensions: 488 × 422× 166mm
- Net weight: 7 kg
