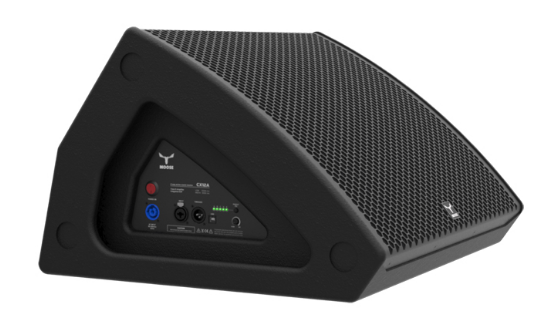

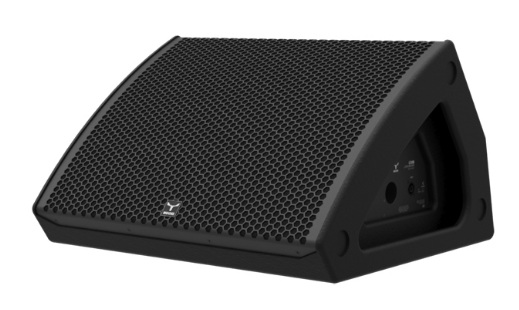

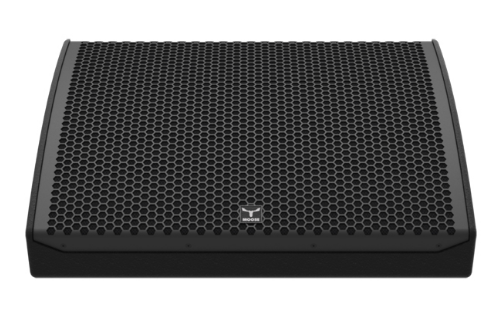

Moose Soul CX15A Active Stage Monitor 15''

Key Features

Professional coaxial stage monitor

2-way active version

15" LF (4in) + 2.9" HF voice coil European transducers

Driven by a Class D, 2 channel amplifier with integrated DSP

Universal 85-264Vac mains supply

Faithful dynamic response and great range

Prepared to fit a wallmount bracket (optional)

Rugged and durable 15mm birch plywood construction

Powder coated custom perforated steel grille

Tech Specs

TYPE | Coaxial stage monitor - active

ENCLOSURE DESIGN | Bass reflex

POWER OUTPUT (RMS) | 400W (RMS)

800W (Program)

1600W (Peak)

FREQUENCY RANGE | 60Hz - 20kHz (-6dB)

NOMINAL IMPEDANCE | N/A

TRANSDUCER TYPE | 15" coaxial EU transducer

LF 4in VC + HF 2.9in VC

DISPERSION | 80° Axisymmetrical

CROSSOVER FREQUENCY | Adjustable by fully programmable DSP, 4 presets

48KHz sampling frequency

24 bit AD/DA converter

MAX. SPL (PEAK) | 130dB @ 1m

AMPLIFIER TYPE | Class D

AMPLIFIER OUTPUT | 800W + 400W (continuous)

1500W (peak)

INPUT | XLR/jack combo connector

OUTPUT | XLR/M 3p

INDICATORS | Power, signal/preset, clip

CONTROLS | Master level control, 4 selectable presets

AC POWER SUPPLY | Switching power supply, 85-264Vac

AC MAINS CONNECTOR | Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION | Over current and short circuit, thermal, DC output and HF (amplifier)

CONSTRUCTION | 15mm brich plywood, textured polyurea coating

GRILLE | Custom perforated metal grille w/ acoustic foam

INSTALLATION / RIGGING / FLYING | 4 rubber feet

2 side handles

Wallmount bracket (optional)

DIMENSIONS (WXDXH) | 600x482x355mm

23.62x19.09x13.98in

WEIGHT | 31Kg

68.34lb
