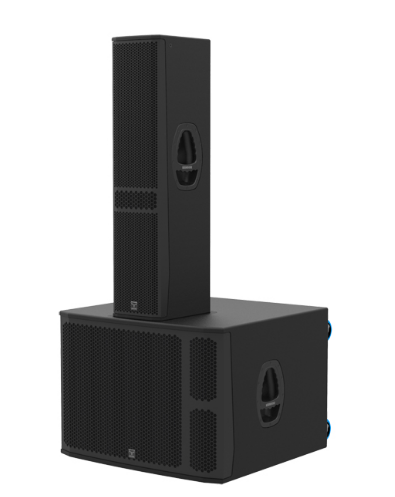

Moose Lane 3200

Key Features

Active and dynamic “all-in-one” column PA system

Powerful, accurate and compact set

18” (4in VC) extended LF active subwoofer

4x 6” (1.46in VC) MF + 1.4” (2.56in VC) HF passive column speaker

Subwoofer driven by a 2-channel Class D amplifier

Fully programmable DSP with selectable presets (4)

Universal 85-264Vac mains, all electronic protections

Ø35mm pole mount socket on both elements

Rugged and durable 18/15mm birch plywood with polyurea coating

Tech Specs

TYPE | Active column PA system

ENCLOSURE DESIGN | Bass reflex subwoofer [LANE18]

Bass reflex column [LANE T406]

POWER OUTPUT (RMS) | 1200W / 4800W (RMS/Peak) [LANE18]

500W / 1200W (RMS/Peak) [LANE T406]

FREQUENCY RANGE | 38Hz - 180Hz

110Hz - 20kHz

TRANSDUCER TYPE | 18" (4in VC) LF [LANE 18]

4x 6" (1.46in VC) MF + 1.4" (2.56in VC) NEO [LANE T406]

European transducers

DISPERSION | 100°x25° (HxV)

CROSSOVER FREQUENCY | DSP controlled with selectable presets

48KHz sampling frequency

24 bit AD/DA converter

MAX. SPL (PEAK) | 136dB @ 1m [LANE18]

129dB @ 1m [LANE T406]

AMPLIFIER TYPE | Class D, 2 channel amplifier

AMPLIFIER OUTPUT | 1600W + 1600W (continuous)

(expandable system)

INPUT | XLR/jack combo connector

OUTPUT | XLR/M 3p

INDICATORS | Power, signal/preset, clip

CONTROLS | Master level control, 4 selectable presets

FEATURE | Cooling by convection

AC POWER SUPPLY | Switching power supply, universal 85-264Vac

AC MAINS CONNECTOR | Neutrik® powerCON, Power-in (blue)/Power-out (grey)

PROTECTION | Over current, short circuit, thermal, DC and HF protections

CONSTRUCTION | 15mm birch plywood, textured polyurea coating [LANE15]

Extruded aluminium profile w/ black powder coating [LANE T803]

GRILLE | Custom perforated metal grille with acoustic foam

INSTALLATION / RIGGING / FLYING | Ø35mm pole mount socket on both speakers

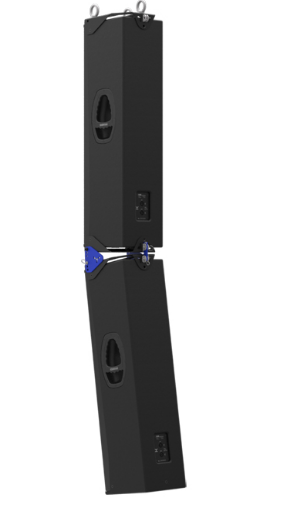

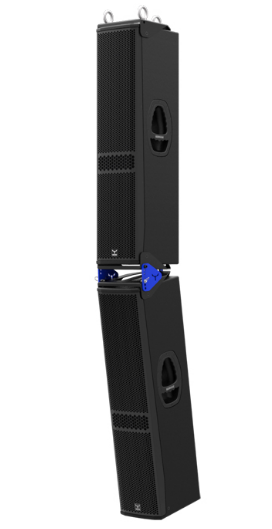

3x M10 inserts for rigging [LANE T406]

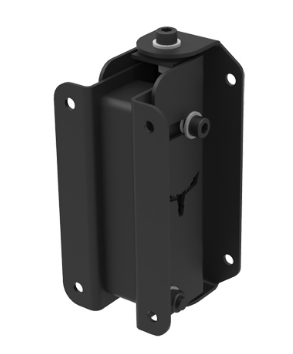

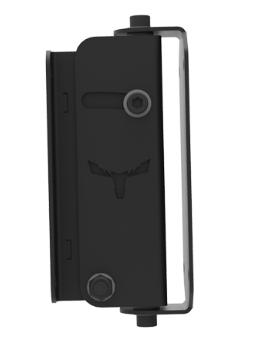

Wall mount support (WSL) for LANE T406

DIMENSIONS (WXDXH) | 745x720x555mm / 29.33x28.35x21.85in [LANE18]

220x310x995mm / 8.66x12.20x39.17in [LANE T406]

WEIGHT | 59Kg / 130.07 [LANE18]

28Kg / 61.73lb [LANE T406]
