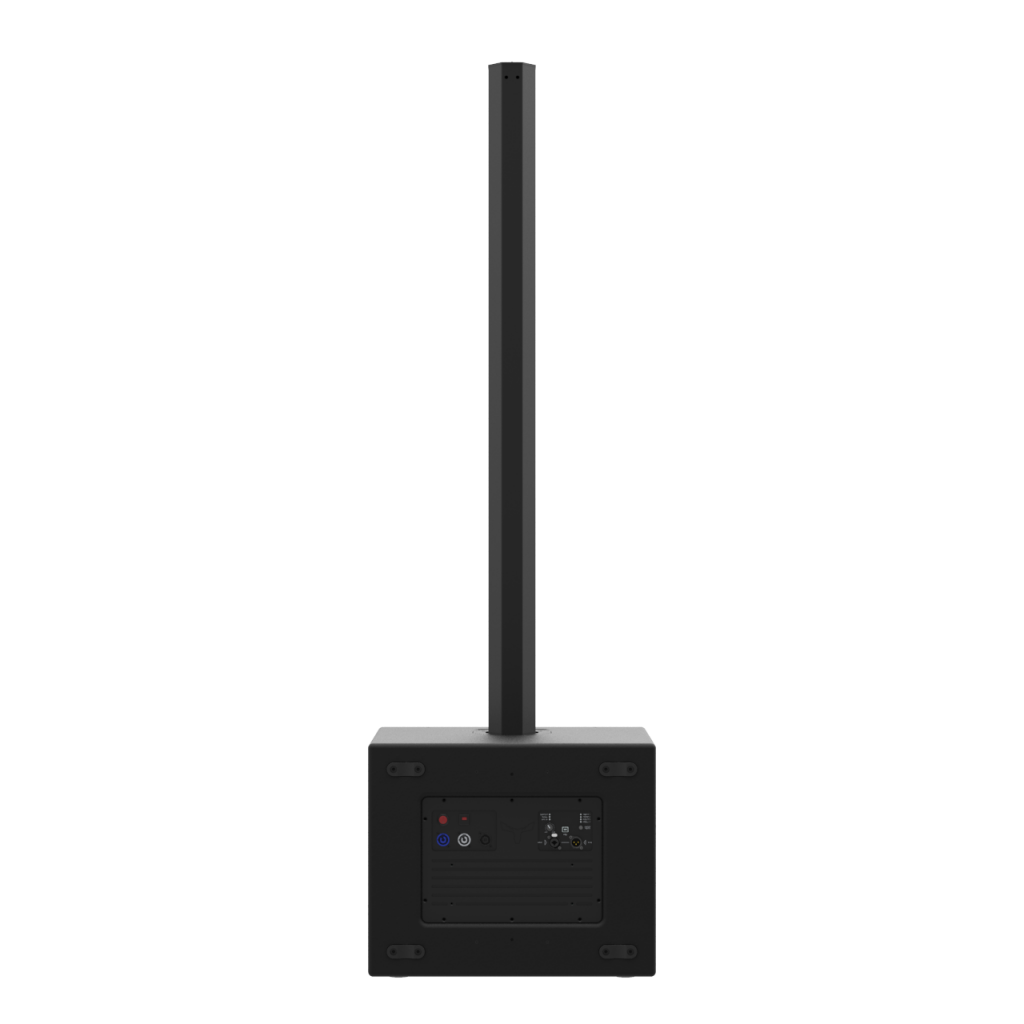

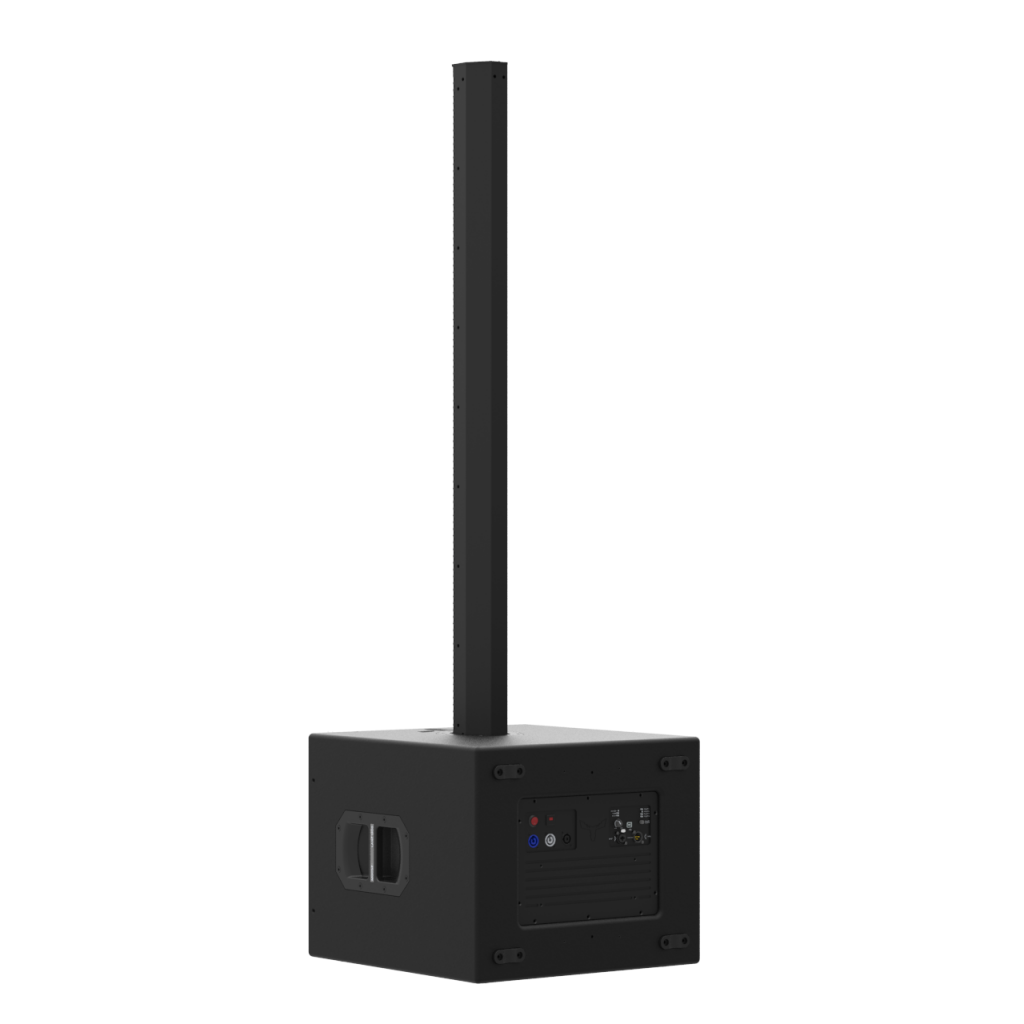

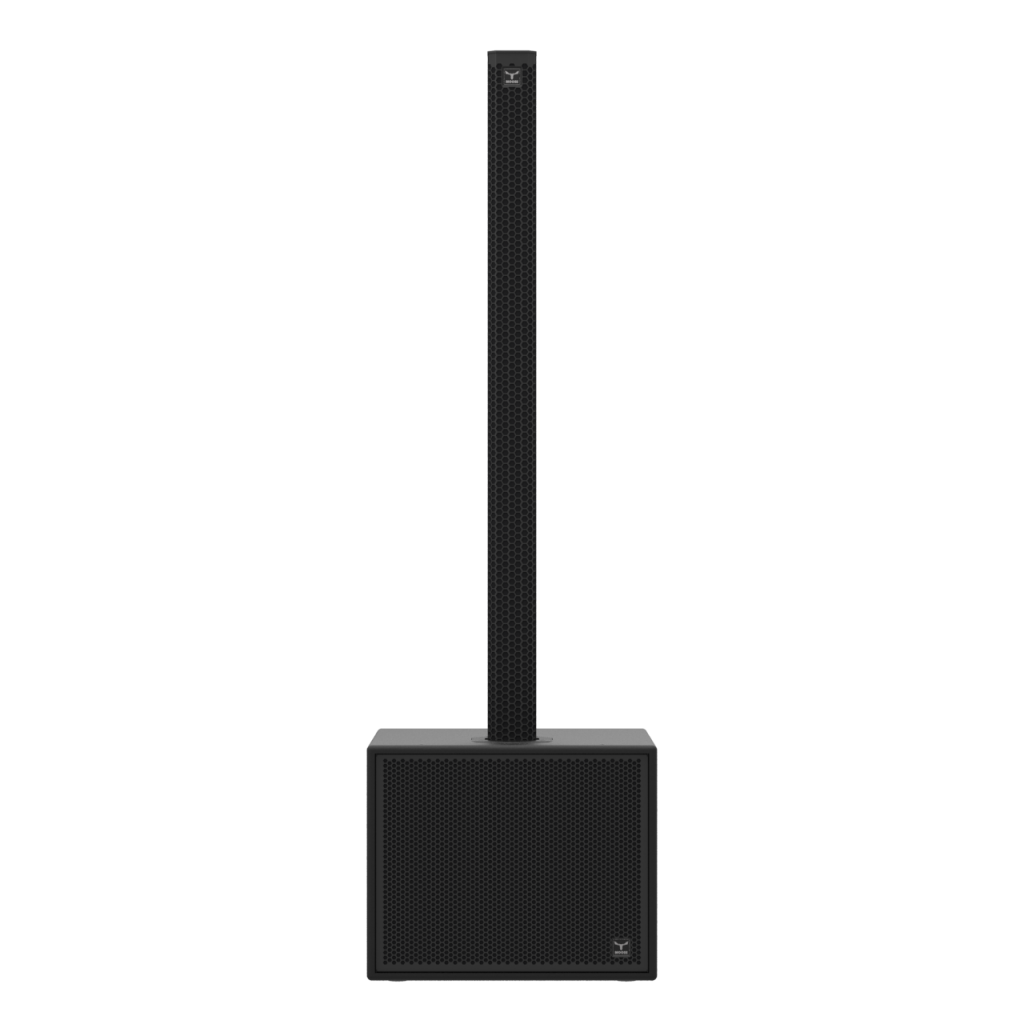

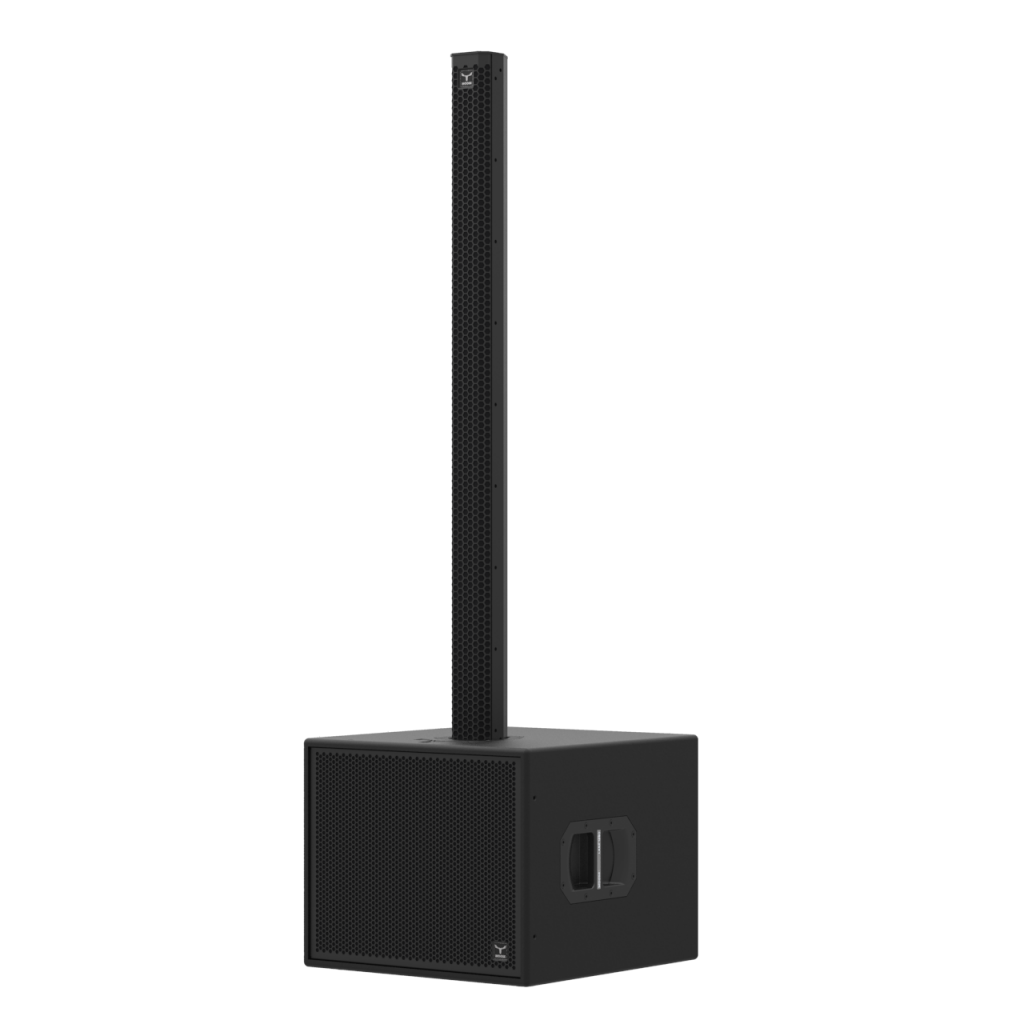

Moose Lane 1400+

Active “all-in-one” column PA system

Great coverage and well-balanced sound distribution

15" (4in VC) LF active subwoofer

8x 3" (0.75in VC) + 1" (0.98in VC) passive column speaker

Driven by a 2-channel Class D power amplifier

Fully programmable DSP with selectable presets (4)

Universal 85-264Vac mains for the active versions

Multi-pin connector to minimize setup time

LANE15+ prepared to fit a Pull-out Trolley handle (3472)

Rugged and durable 15mm birch plywood with polyurea coating

Tech Specs

TYPE | Active column PA system

ENCLOSURE DESIGN | Bass reflex [LANE15+]

Column sealed [LANE T803]

POWER OUTPUT (RMS) | 1000W / 1400W [LANE15+]

200W / 350W [LANE T803]

FREQUENCY RANGE | 40Hz - 180Hz [LANE15]

85Hz - 20kHz [LANE T803]

TRANSDUCER TYPE | 15" (4in VC) LF EU transducer [LANE15+]

8x 3" (0.75in VC) MF [LANE T803]

1" (0.98in VC) HF EU transducer [LANE T803]

DISPERSION | 120° horizontal (average)

CROSSOVER FREQUENCY | DSP controlled with selectable presets

48KHz sampling frequency

24 bit AD/DA converter

MAX. SPL (PEAK) | 132dB @ 1m (system)

AMPLIFIER TYPE | Class D, 2 channel amplifier

AMPLIFIER OUTPUT | 800W + 400W (continuous)

1600W (peak)

INPUT | XLR/jack combo connector

OUTPUT | XLR/M 3p

INDICATORS | Power, signal/preset, clip

CONTROLS | Master level control, 4 selectable presets

FEATURE | Cooling by convection

AC POWER SUPPLY | Switching power supply, universal 85-264Vac

AC MAINS CONNECTOR | Neutrik® powerCON, Power-in (blue)/Power-out (grey)

PROTECTION | Over current, short circuit, thermal, DC and HF protections

CONSTRUCTION | 15mm birch plywood, textured polyurea coating [LANE15]

Extruded aluminium profile w/ black powder coating [LANE T803]

GRILLE | Custom perforated metal grille with acoustic foam

INSTALLATION / RIGGING / FLYING | 4 rubber feet on the back of LANE15+ to protect the amp

Plug-and-play column fitting

Custom multi-pin connector for T803

Height extender available (500mm)

LANE15+ prepared to fit a Pull-out Trolley handle (3472)

DIMENSIONS (WXDXH) | 530x550x430mm / 20.87x21.65x16.93in [LANE15+]

107x95x1320mm / 4.21x3.74x51.97in [LANE T803]

WEIGHT | 33Kg / 72.8lb [LANE15+]

8Kg / 17.6lb [LANE T803]
