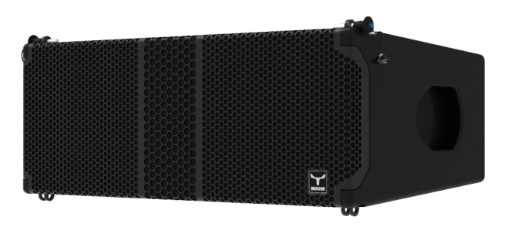

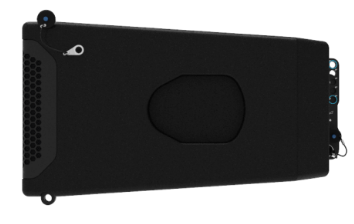

Moose LA 88A Active Line Array 2x8''

Front loaded array element, trapezoidal enclosure

2-way active version

8" (2in VC) MF front loaded + 8" (2in VC) MF horn loaded

2x 1" (1in) HF European transducers

Class D amplifier with integrated DSP

Universal 85-264Vac mains, SMPS

Faithful dynamic response and great range

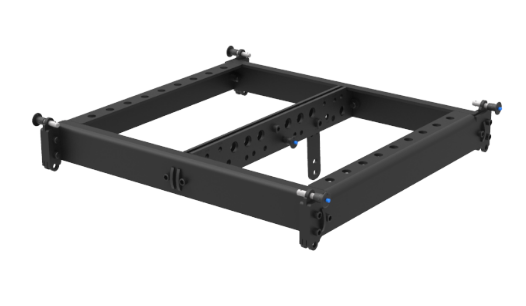

Integrated rigging flyware for stacked and flown configurations

Rugged and durable 15mm birch plywood construction

Powder coated custom perforated steel grille

Tech Specs

TYPE | 2-way ACTIVE line array element

ENCLOSURE DESIGN | Trapezoidal array enclosure

POWER OUTPUT (RMS) | 500W (RMS)

1000W (Program)

2000W (Peak)

FREQUENCY RANGE | 80Hz - 18kHz (-10dB)

NOMINAL IMPEDANCE | N/A

TRANSDUCER TYPE | 8" MF (2.0in) EU transducer, front loaded

8" MF (2.0in) EU transducer, horn loaded

2x 1" HF (1.0in) EU transducer

DISPERSION | Horizontal: 100°

Vertical: 7°

CROSSOVER FREQUENCY | DSP controlled with selectable presets

48KHz sampling frequency

24 bit AD/DA converter

MAX. SPL (PEAK) | 130dB @ 1m

AMPLIFIER TYPE | Class D, 2 channel amplifier

AMPLIFIER OUTPUT | 800W + 400W (continuous)

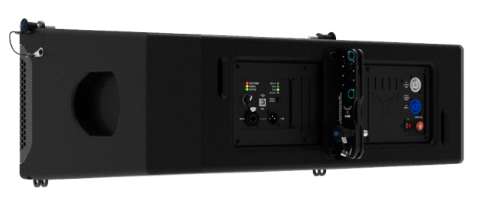

INPUT | XLR/jack combo connector

OUTPUT | XLR/M 3p

INDICATORS | Power, signal/preset, status, clip

CONTROLS | Master level control, 4 selectable presets

FEATURE | Cooling by convection

AC POWER SUPPLY | Switching power supply, 85-264Vac

AC MAINS CONNECTOR | Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION | Over current and short circuit protection, thermal protection,

DC output protection and HF protection (amplifier)

CONSTRUCTION | 15mm brich plywood, rugged polyurea coating

GRILLE | Custom perforated metal grille with protective foam

INSTALLATION / RIGGING / FLYING | Integrated rigging flyware

Splay angle adjustable, 8° (1° increments)

Ø9.8mm ball pins w/ stainless steel lanyard with PVC

DIMENSIONS (WXDXH) | 640x435x245mm

25.19x17.13x9.65in

WEIGHT | 26Kg

57.32lb
