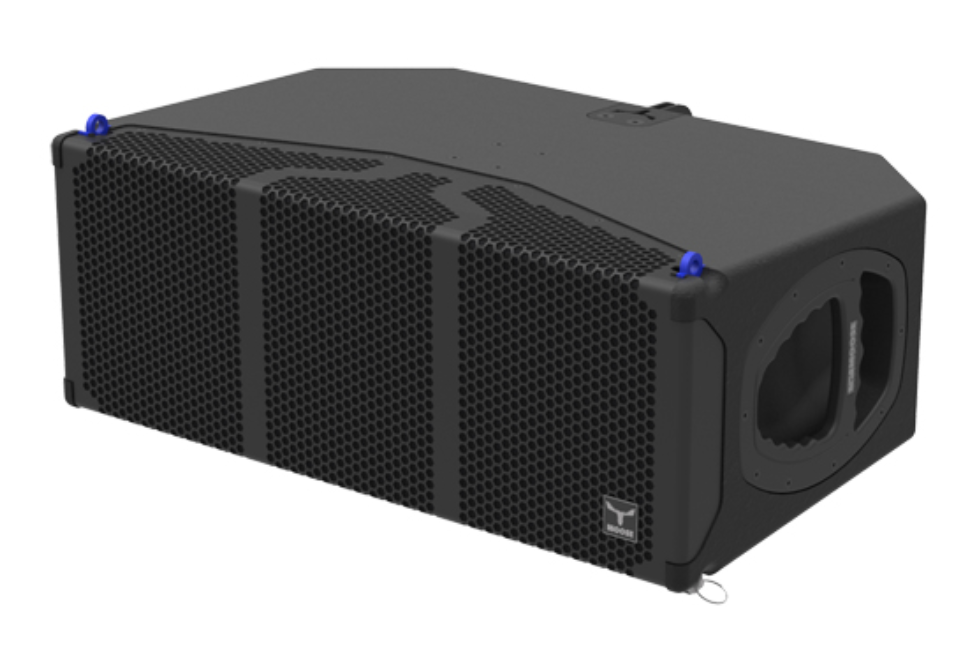

Moose LA 21A Active Line Array 2x10''

Ultra-Compact 2-way curvilinear array module

2-way active version

2x 10” (2.56in VC) MF + 1.4” (2.56in VC) Neodymium HF driver

Class D amplifier with integrated DSP

Universal 85-264Vac mains supply

Tech Specs

TYPE | 2-way active curvilinear array element

ENCLOSURE DESIGN | Trapezoidal array enclosure

POWER OUTPUT (RMS) | 700W (RMS)

1400W (Program)

2800W (Peak)

FREQUENCY RANGE | 52Hz - 19,5kHz (-10dB)

NOMINAL IMPEDANCE | N/A

TRANSDUCER TYPE | 2x 10" (2.56in VC) MF European transducer

1.4" (2.56in VC) Neodymium HF European transducer

DISPERSION | Horizontal: 100°

Vertical: array length-splay dependent

CROSSOVER FREQUENCY | DSP controlled with selectable presets

48KHz sampling frequency

24 bit AD/DA converter

MAX. SPL (PEAK) | 135dB @ 1m

AMPLIFIER TYPE | Class D, 2-way amplifier

AMPLIFIER OUTPUT | 800W + 400W (continuous)

INPUT | XLR/jack combo connector

OUTPUT | XLR/M 3p

INDICATORS | Power, signal/preset, clip

CONTROLS | Master level control, 4 selectable presets

FEATURE | Convection

AC POWER SUPPLY | Switching power supply, 85-264Vac

AC MAINS CONNECTOR | Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION | Over current and short circuit protection, thermal protection,

DC output protection and HF protection (amplifier)

CONSTRUCTION | 15mm brich plywood, rugged polyurea coating

GRILLE | Custom perforated metal grille with protective foam

INSTALLATION / RIGGING / FLYING | Integrated steel rigging system

Ø9.8mm magnetic pins w/ stainless steel lanyard with PVC

Splay angle adjustable, 8° (1° increments)

DIMENSIONS (WXDXH) | 740x530x280mm

29.13x20.87x11.02in

WEIGHT | 32Kg

70.55lb

Faithful dynamic response and great range

Integrated rigging system for stacked and flown configurations

Rugged and durable 15mm birch plywood construction

Powder coated custom perforated steel grille
