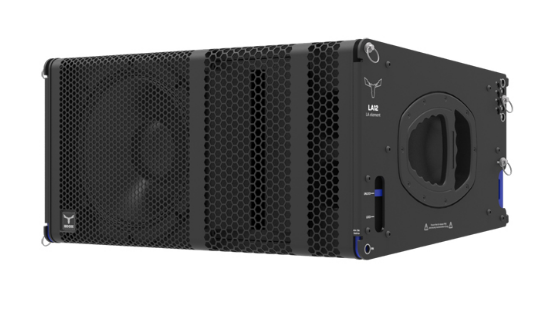

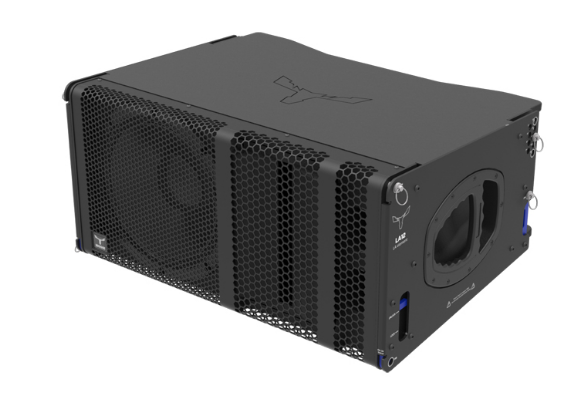

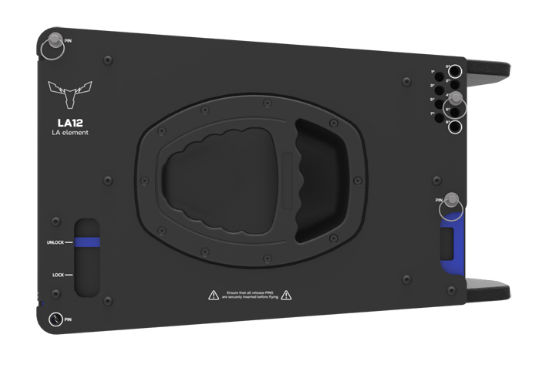

Moose LA 12A Active Line Array 12'' 2 way

LA12A

Key Features

Front loaded array element

2-way active version

12" MF (3in VC) + 1.4" HF NEO (2.56in VC) EU transducers

Class D amplifier with integrated DSP

Universal 85-264Vac mains supply

Faithful dynamic response and great range

Integrated rigging system for stacked and flown configurations

Rugged and durable 15mm birch plywood construction

Powder coated custom perforated steel grille

Tech Specs

TYPE | 2-way active line array element

ENCLOSURE DESIGN | Trapezoidal array enclosure

POWER OUTPUT (RMS) | 650W (RMS)

1300W (Program)

2600W (Peak)

FREQUENCY RANGE | 62Hz - 20kHz (-10dB)

NOMINAL IMPEDANCE | N/A

TRANSDUCER TYPE | 12" MF (3in) European transducer

1.4" HF NEO (2.56in) European transducer

DISPERSION | Horizontal: 100°

Vertical: 7°

CROSSOVER FREQUENCY | DSP controlled with selectable presets

48KHz sampling frequency

24 bit AD/DA converter

MAX. SPL (PEAK) | 131dB @ 1m

AMPLIFIER TYPE | Class D, 2 channel amplifier

AMPLIFIER OUTPUT | 800W + 400W (continuous)

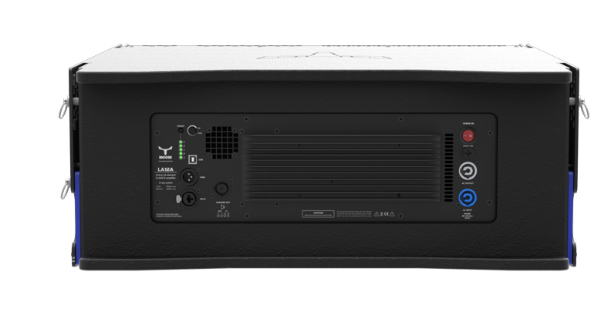

INPUT | XLR/jack combo connector

OUTPUT | XLR/M 3p

INDICATORS | Power, signal/preset, clip

CONTROLS | Master level control, 4 selectable presets

FEATURE | Cooling by convection

AC POWER SUPPLY | Switching power supply, 85-264Vac

AC MAINS CONNECTOR | Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION | Over current and short circuit protection, thermal protection,

DC output protection and HF protection (amplifier)

CONSTRUCTION | 15mm brich plywood, rugged polyurea coating

GRILLE | Custom perforated metal grille with protective foam

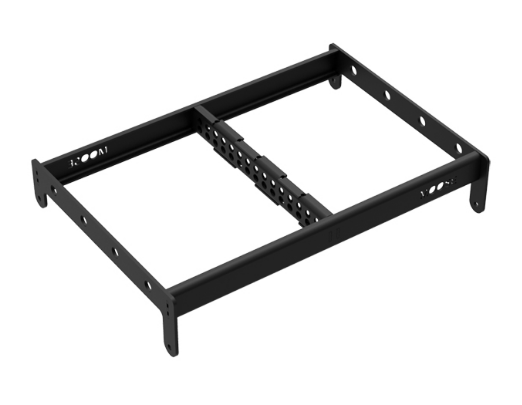

INSTALLATION / RIGGING / FLYING | Integrated rigging flyware

Splay angle adjustable, 8° (1° increments)

Ø9.8mm ball pins w/ stainless steel lanyard with PVC

DIMENSIONS (WXDXH) | 640x505x330mm

25.20x19.88x12.99in

WEIGHT | 31Kg

68.34lb
