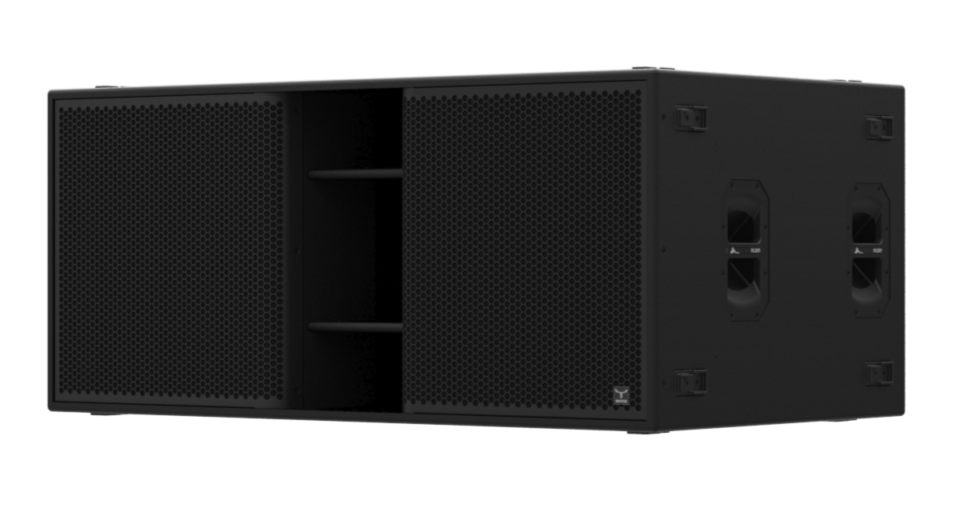

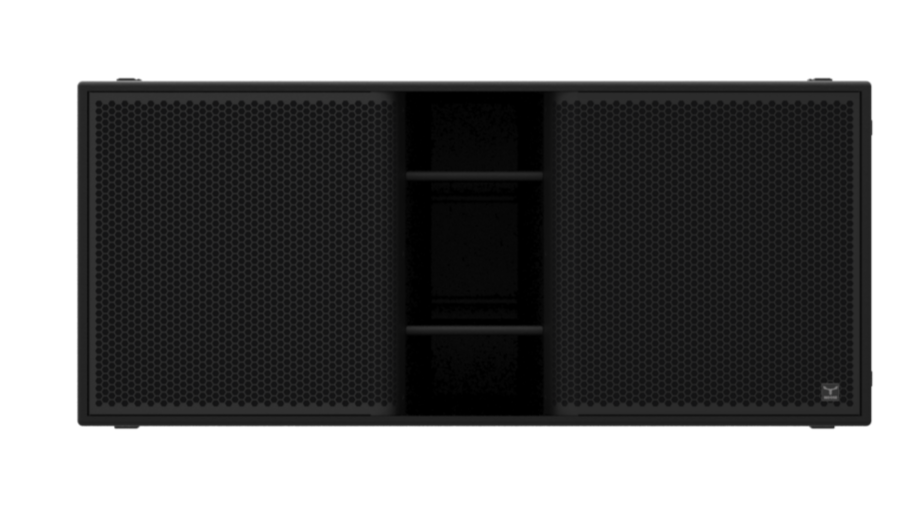

Moose HL221 Passive Subwoofer 2x21"

Dual horn-loaded subwoofer

High power density, high level output

Excellent "punch", extended Low frequency

2x 21” (4.5in VC) Neodymium EU transducer (high excursion)

Extended sub frequency response to 25Hz

2x NLT8MP, LF1 // LF2 or independent LF1 & LF2 (through switch)

18mm baltic birch plywood construction, polyurea coating

Recesses on top to facilitate the stacking

Powder coated custom perforated steel grille

Heavy duty wheel casters on the back (optional)

Tech Specs

TYPE | High-power compact subwoofer

ENCLOSURE DESIGN | Horn-loaded, vented

POWER OUTPUT (RMS) | 3600W (AES)

8000W (Program)

14000W (Peak)

FREQUENCY RANGE | 25Hz - 110Hz (-3dB)

NOMINAL IMPEDANCE | LF1 // LF2 = 4Ohm

LF1 = 8Ohm & LF2 = 8Ohm

TRANSDUCER TYPE | 2x 21" (4.5in VC) Neodymium LF EU transducer

CROSSOVER FREQUENCY | 24Hz Butterworth 24dB

MAX. SPL (PEAK) | 146dB @ 1m

INPUT SENSITIVITY | 108dB

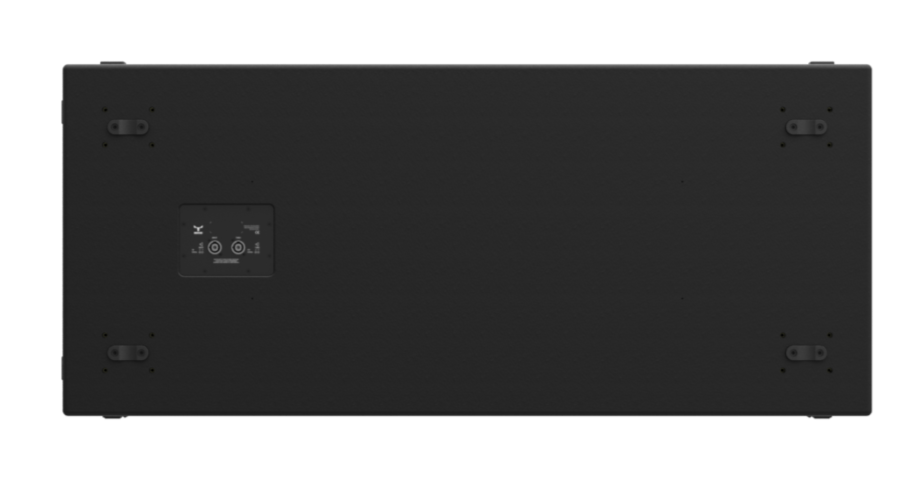

CONNECTOR | 2x NLT8MP, LF1 & LF2 parallel-connected

Independent LF1 & LF2 (through toggle switch)

CONSTRUCTION | 18mm birch plywood with rugged polyurea coating

GRILLE | Custom perforated metal grille w/ acoustic foam

INSTALLATION / RIGGING / FLYING | 12 custom rugged feet, 2 side handles

4 rubber feet to protect the back panel

16x M6 inserts for wheels (back panel)

DIMENSIONS (WXDXH) | 1380x800x600mm

54.33x31.50x23.62in

WEIGHT | 105Kg

231.48
