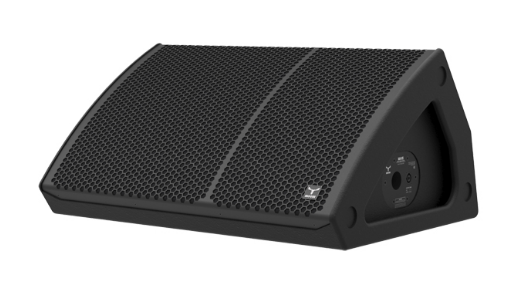

Moose Groove MA12 Active Stage Monitor 12''

MA12

Key Features

Multipurpose wedged stage monitor

Passive and active versions available

12" (2.5in VC) MF + 1" (1.73in VC) HF EU transducers

User-rotatable CD horn 90°x60° for ideal dispersion

2-channel Class D amplifier with integrated DSP

Universal 85-264Vac mains, SMPS with PFC

Prepared for wall and Truss mounting

Elegant looking professional enclosure

Rugged and durable 15mm birch plywood, polyurea coating

Tech Specs

TYPE | 2-Way active monitor

ENCLOSURE DESIGN | Wedged cabinet - bass reflex

POWER OUTPUT (RMS) | 360W (RMS)

510W (Program)

900W (Peak)

FREQUENCY RANGE | 65Hz - 18kHz

NOMINAL IMPEDANCE | N/A

TRANSDUCER TYPE | 12" MF (2.5in VC) EU transducer

1" HF (1.73in VC) EU transducer

DISPERSION | CD horn, 90°x60° and 60°x90°

User-rotatable

CROSSOVER FREQUENCY | DSP controlled with selectable presets

48KHz sampling frequency

24 bit AD/DA converter

MAX. SPL (PEAK) | 127dB @ 1m

AMPLIFIER TYPE | Class D, 2 channel amplifier

AMPLIFIER OUTPUT | 800W + 400W (continuous)

1500W (peak)

INPUT | XLR/jack combo connector

OUTPUT | XLR/M 3p

INDICATORS | Power, signal/preset, clip

CONTROLS | Master level control, 4 selectable presets

FEATURE | Cooling by convection

AC POWER SUPPLY | Switching power supply, 85-264Vac with PFC

AC MAINS CONNECTOR | Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION | Over current and short circuit protection, thermal protection,

DC output protection and HF protection (amplifier)

CONSTRUCTION | 15mm birch plywood, textured polyurea coating

GRILLE | Custom perforated metal grille with acoustic foam

INSTALLATION / RIGGING / FLYING | 4 rubber feet

Side handles, 4x M8 inserts + 2x M10 inserts

Prepared to fit a "U" bracket

DIMENSIONS (WXDXH) | 630x425x330mm

24.80x16.73x12.99in

WEIGHT | 26Kg

57.32lb
