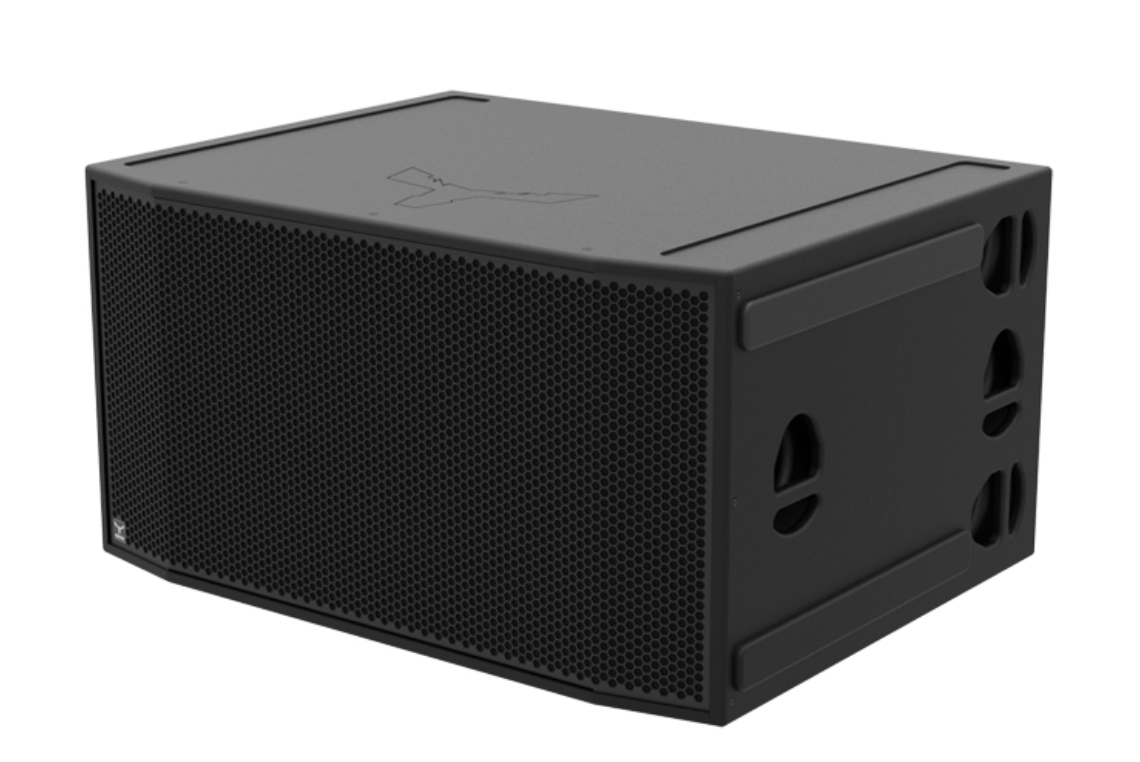

Moose G218A Active Line Array Sub 2x18''

Bass reflex ACTIVE subwoofer

2x 18" LF (4in VC) European transducer

Optimized for high SPL output

3200W class D, single channel amplifier

85-264Vac universal mains, all electronic protections

Fully programmable built-in DSP, 4 selectable presets

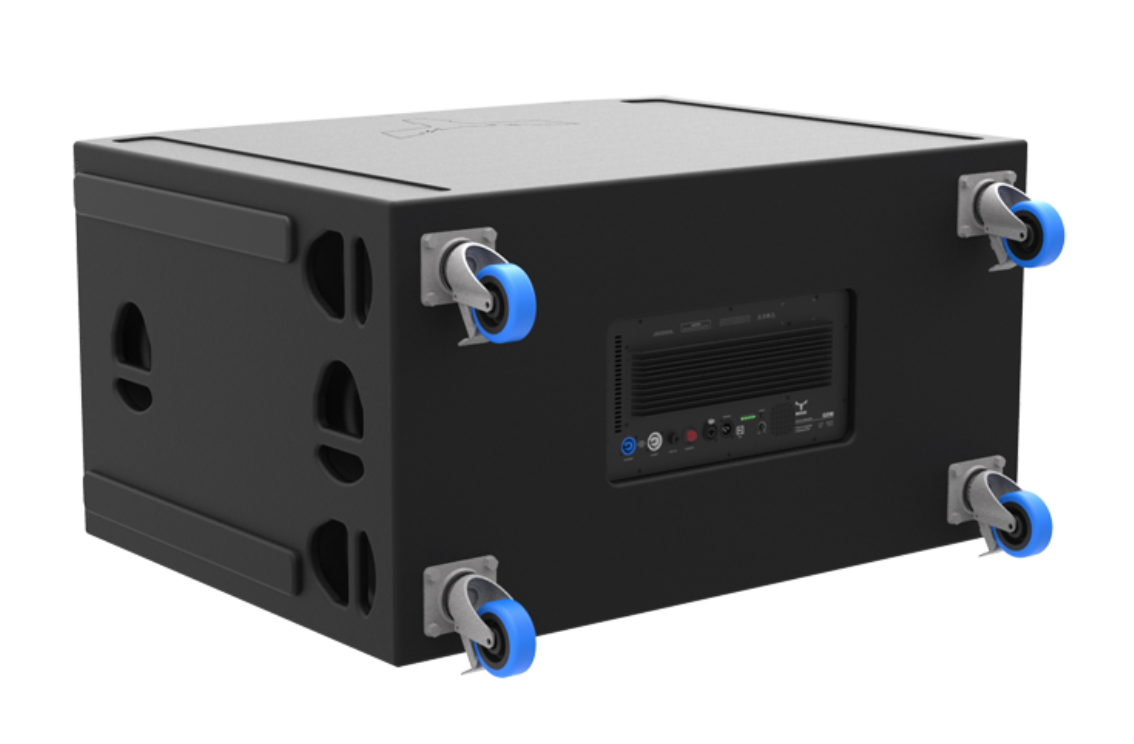

Heavy duty wheel casters on the back (optional)

Rugged and durable 18mm birch plywood construction

Powder coated custom perforated steel grille

Product Sheet

Interested in this Product? Contact us!

Tech Specs

TYPE | Compact ACTIVE subwoofer

ENCLOSURE DESIGN | Bass reflex

POWER OUTPUT (RMS) | 2400W (AES)

4800W (Program)

9600W (Peak)

FREQUENCY RANGE | 27Hz - 180Hz (-10dB)

NOMINAL IMPEDANCE | N/A

TRANSDUCER TYPE | 2x 18" (4in VC) LF EU transducer

CROSSOVER FREQUENCY | DSP controlled with selectable presets

48KHz sampling frequency

24 bit AD/DA converter

MAX. SPL (PEAK) | 140dB @ 1m

AMPLIFIER TYPE | Class D, single channel amplifier

AMPLIFIER OUTPUT | 3200W (continuous)

INPUT | XLR/Jack combo connector

OUTPUT | XLR/M 3p connector

INDICATORS | Power, signal/preset, clip

CONTROLS | Master level control, 4 selectable presets

FEATURE | Cooling by convection

AC POWER SUPPLY | Switching power supply, 85-264Vac

AC MAINS CONNECTOR | Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION | Over current and short circuit protection, thermal protection,

DC output protection and HF protection (amplifier)

CONSTRUCTION | 18mm birch plywood, textured polyurea coating

GRILLE | Custom perforated metal grille w/ acoustic foam

INSTALLATION / RIGGING / FLYING | 4 rubber feet, 4 side handles

4 swivel castors (optional)

Prepared for stacking

DIMENSIONS (WXDXH) | 1070x830x580mm

42.13x32.68x22.83in

WEIGHT | 96Kg

211.64lb
