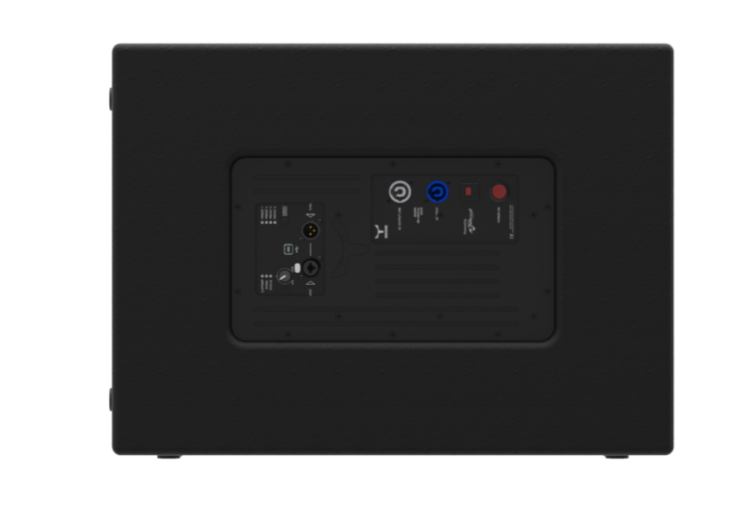

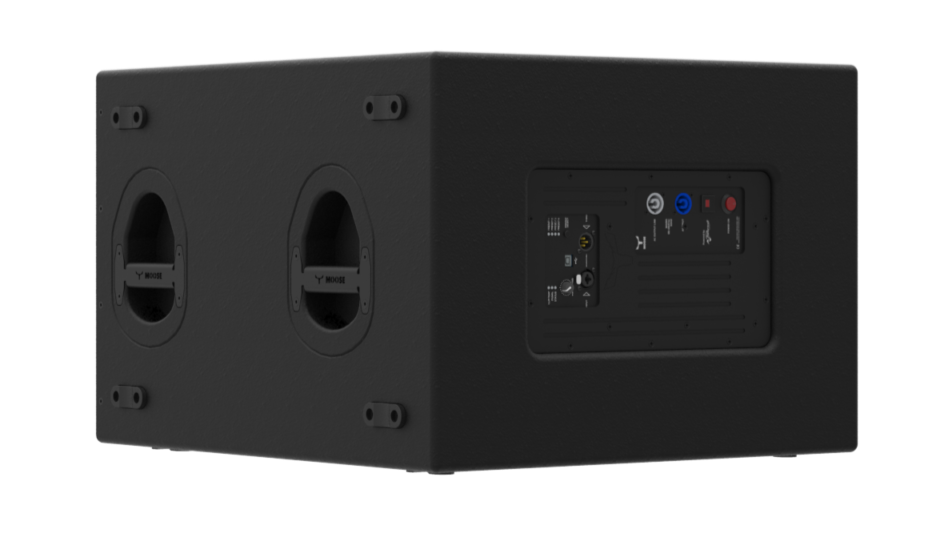

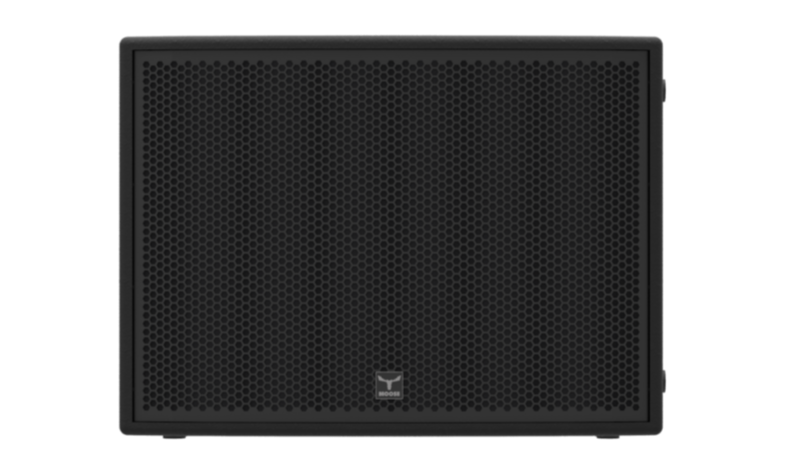

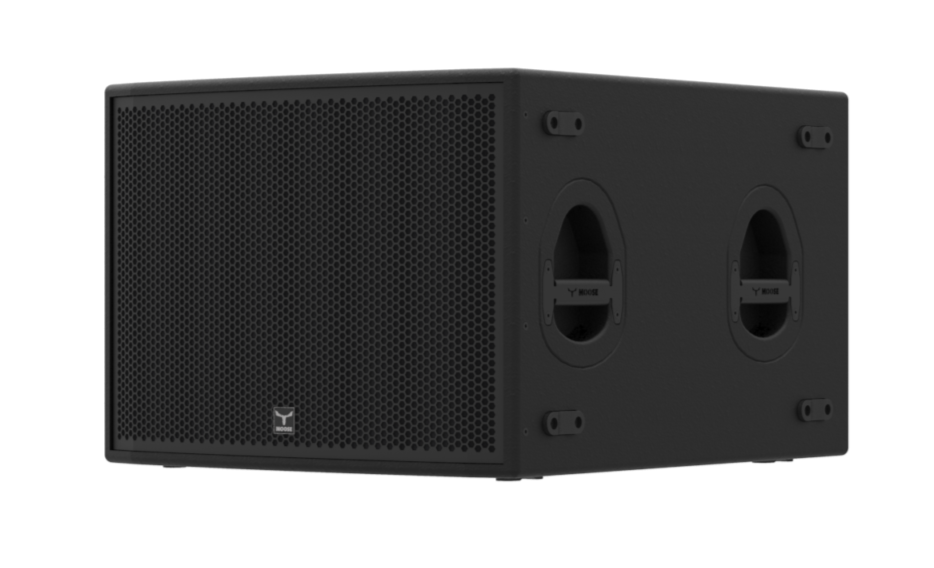

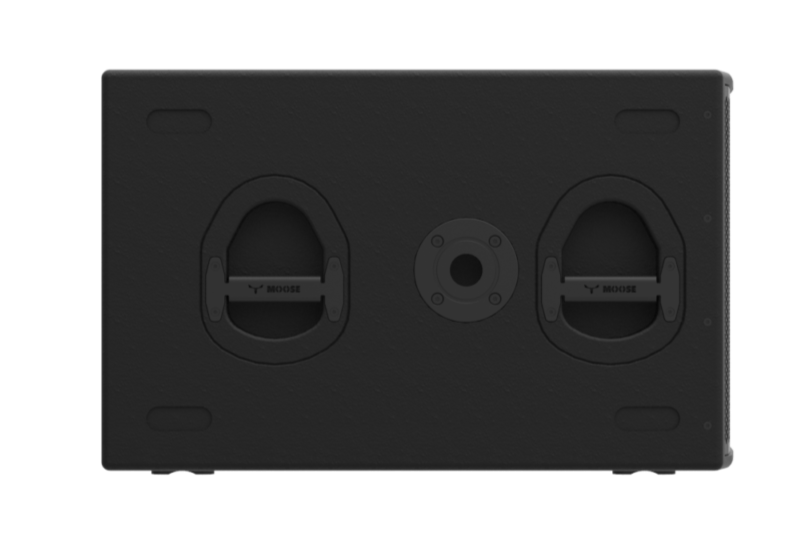

Moose G212A Active Subwoofer 2x12"

5th order Band-Pass Subwoofer

2x 12" (4in VC) LF EU transducers

Versatile, compact, coherent and powerful subwoofer

2400W class D, single channel amplifier

85-264Vac universal mains, SMPS, all electronic protections

Fully programmable built-in DSP, 4 selectable presets

Prepared for stacking and pole mount usage

Rugged and durable 18mm birch plywood construction

Powder coated custom perforated steel grille

Tech Specs

TYPE | Compact ACTIVE subwoofer

ENCLOSURE DESIGN | 5th order Band-Pass Subwoofer

POWER OUTPUT (RMS) | 1400W (AES)

2800W (Program)

5600W (Peak)

FREQUENCY RANGE | 35Hz - 200Hz (-6dB)

NOMINAL IMPEDANCE | N/A

TRANSDUCER TYPE | 2x 12" LF (4in VC) EU transducer

CROSSOVER FREQUENCY | DSP controlled with selectable presets

48KHz sampling frequency

24 bit AD/DA converter

MAX. SPL (PEAK) | 129dB @ 1m (continuous)

135dB @ 1m (peak)

AMPLIFIER TYPE | Class D, single channel amplifier

AMPLIFIER OUTPUT | 2400W (continuous)

INPUT | XLR/F 3p combo connector

OUTPUT | XLR/M 3p connector

INDICATORS | Power, signal/preset, Clip

CONTROLS | Master level control, 4 selectable presets

FEATURE | Cooling by convection

AC POWER SUPPLY | Switching power supply, 85-264Vac

AC MAINS CONNECTOR | Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION | Over current and short circuit protection, thermal protection,

DC output protection and HF protection (amplifier)

CONSTRUCTION | 15mm/18mm birch plywood, textured polyurea coating

GRILLE | Custom perforated metal grille w/ acoustic foam

INSTALLATION / RIGGING / FLYING | 4 rubber feet, 4 side handles

Ø35mm pole mount socket

Prepared for stacking

DIMENSIONS (WXDXH) | 600x710x440mm

23.62x27.95x17.32

AC MAINS CONNECTOR | 51Kg

114.43lb
