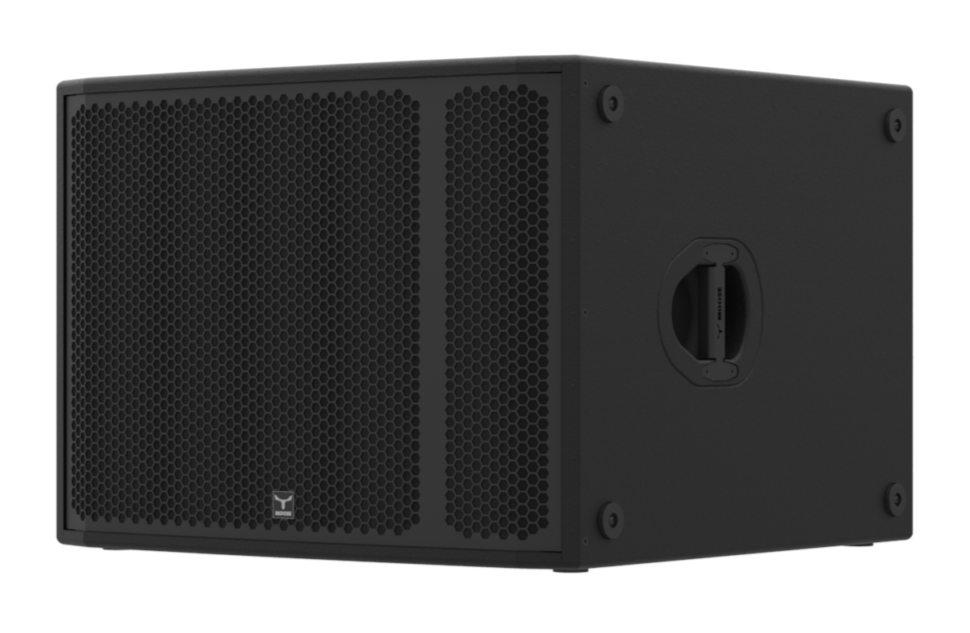

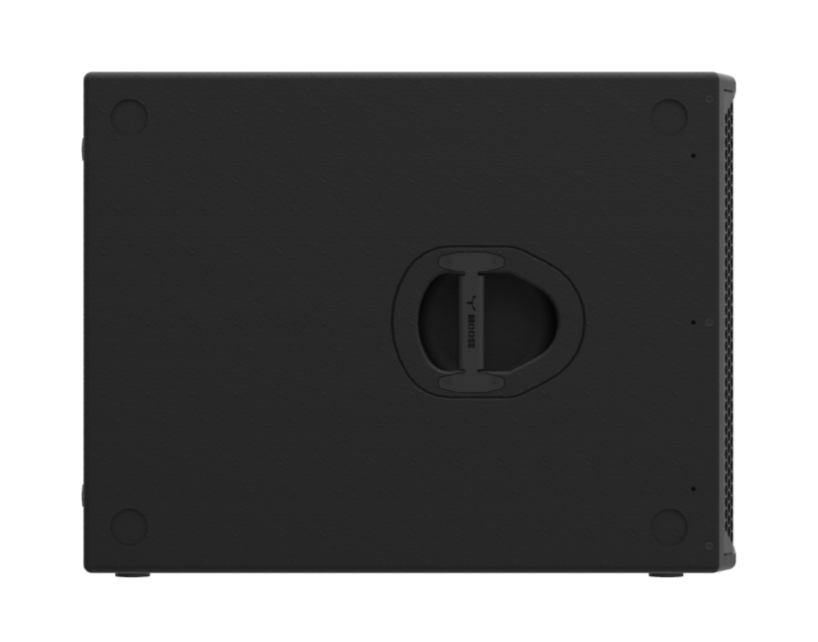

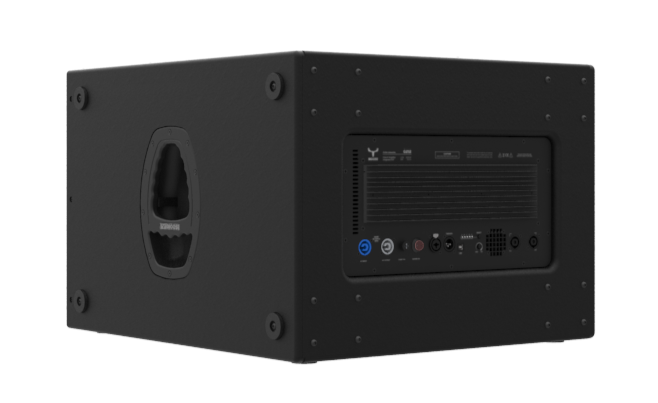

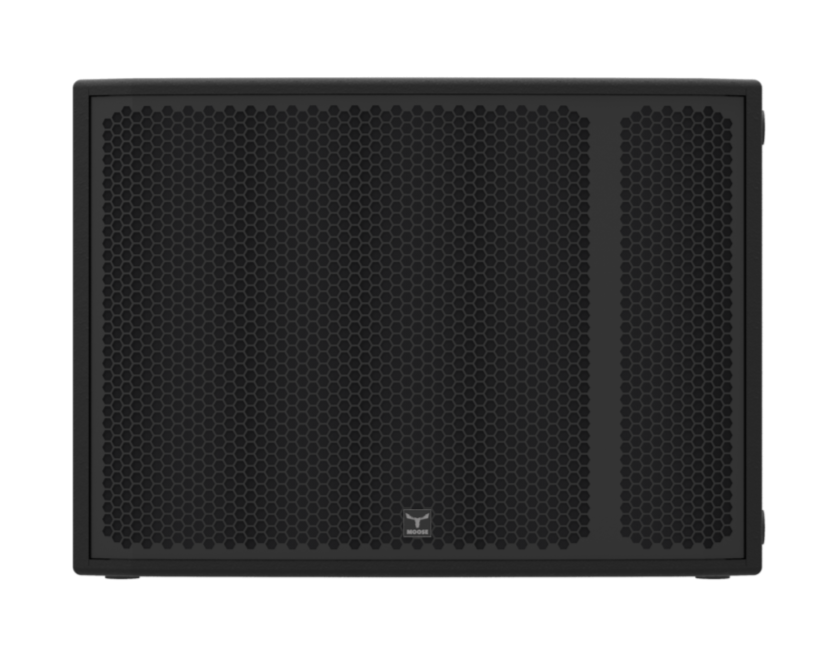

Moose G18A Active Subwoofer 18"

Bass reflex ACTIVE subwoofer

1x 18" (4in VC) LF European transducer

Versatile, compact and coherent subwoofer

2000W class D, single channel amplifier

85-264Vac universal mains, all electronic protections

Fully programmable built-in DSP (4 presets)

Prepared for stacking and pole mount usage

Rugged and durable 18mm birch plywood construction

Powder coated custom perforated steel grille

Tech Specs

TYPE | Compact ACTIVE subwoofer

ENCLOSURE DESIGN | Bass reflex

POWER OUTPUT (RMS) | 1200W (AES)

2400W (Program)

4800W (Peak)

FREQUENCY RANGE | 27Hz - 200Hz (-10dB)

NOMINAL IMPEDANCE | N/A

TRANSDUCER TYPE | 1x 18" LF (4in VC) EU transducer

CROSSOVER FREQUENCY | DSP controlled with selectable presets

48KHz sampling frequency

24 bit AD/DA converter

MAX. SPL (PEAK) | 135dB @ 1m

AMPLIFIER TYPE | Class D, single channel amplifier

AMPLIFIER OUTPUT | 2000W (continuous)

INPUT | XLR/Jack combo connector

OUTPUT | XLR/M 3p connector

INDICATORS | Power, signal/preset, clip

CONTROLS | Master level control, 4 selectable presets

FEATURE | Cooling by convection

AC POWER SUPPLY | Switching power supply, 85-264Vac

AC MAINS CONNECTOR | Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION | Over current and short circuit protection, thermal protection,

DC output protection and HF protection (amplifier)

CONSTRUCTION | 18mm birch plywood, textured polyurea coating

GRILLE | Custom perforated metal grille w/ acoustic foam

INSTALLATION / RIGGING / FLYING | 4 rubber feet, 2 side handles

Ø35mm pole mount socket

Prepared for stacking

DIMENSIONS (WXDXH) | 750x710x540mm

29.53x27.95x21.26in

AC MAINS CONNECTOR | 59Kg

130.07lb
