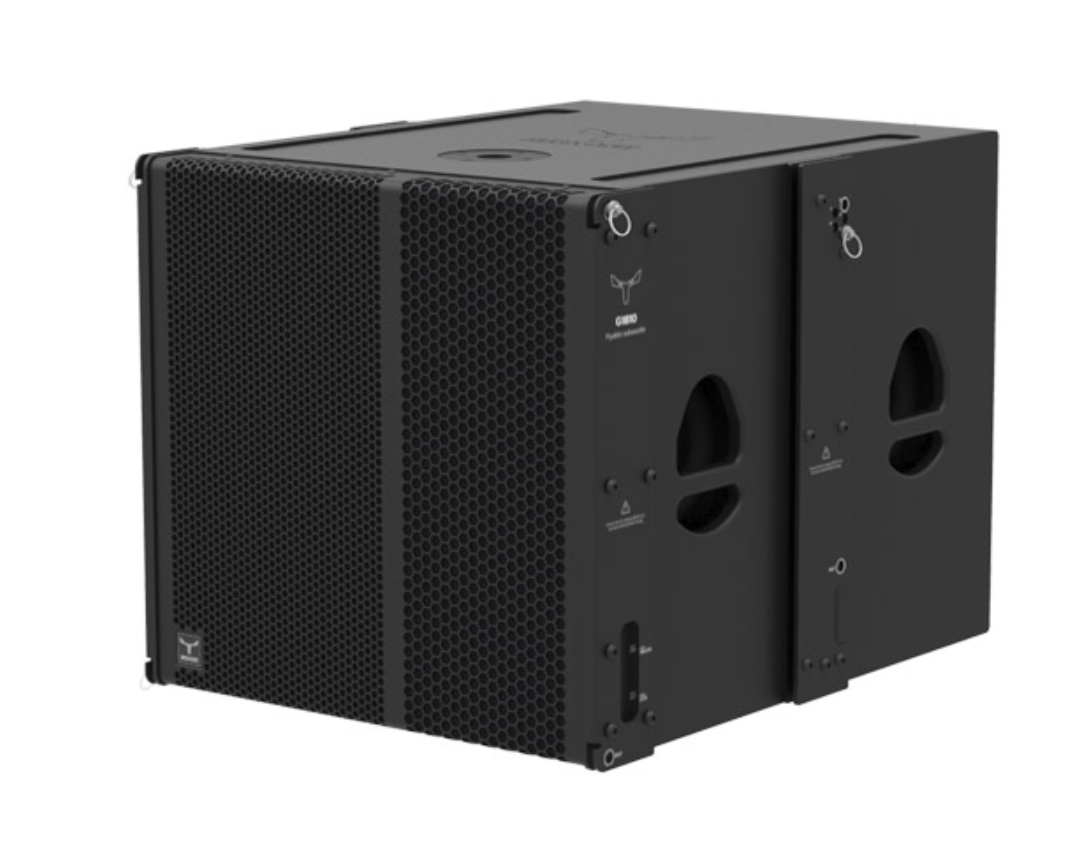

Moose G1810A Active Line Array Fly Sub 18''

G1810A

Key Features

Bass reflex & flyable ACTIVE subwoofer

Suited for 10" line array speaker - LA10

1x 18" (4in VC) LF EU transducer, 1200W AES

Versatile, compact and coherent subwoofer

3200W / 8ohm class D amplifier

85-264Vac universal mains, all electronic protections

Fully programmable built-in DSP with selectable presets

Prepared for stacking and flying operation

Rugged and durable 18mm birch plywood construction

Powder coated custom perforated steel grille

Tech Specs

TYPE | Flyable & Compact ACTIVE subwoofer

ENCLOSURE DESIGN | Bass reflex

POWER OUTPUT (RMS) | 1200W (AES)

2400W (Program)

4800W (Peak)

FREQUENCY RANGE | 32Hz - 200Hz

NOMINAL IMPEDANCE | N/A

TRANSDUCER TYPE | 1x 18" LF (4in VC) EU transducer

CROSSOVER FREQUENCY | DSP controlled with selectable presets

48KHz sampling frequency

24 bit AD/DA converter

MAX. SPL (PEAK) | 135dB @ 1m

AMPLIFIER TYPE | Class D, single channel amplifier

AMPLIFIER OUTPUT | 3200W / 8ohm (continuous)

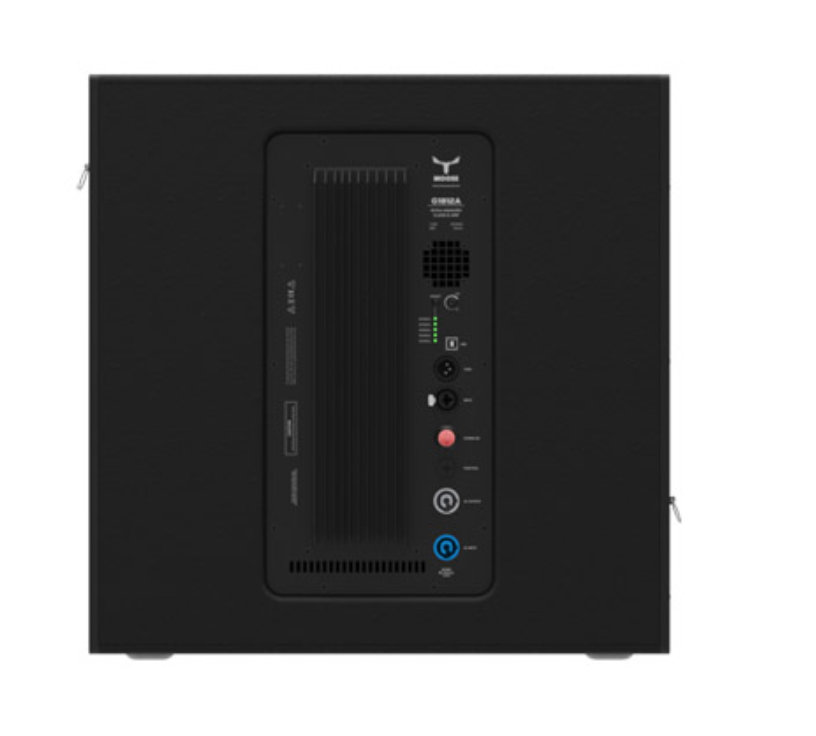

INPUT | XLR/Jack combo connector

OUTPUT | XLR/M 3p connector

INDICATORS | Power, signal/preset, clip

CONTROLS | Master level control, 4 selectable presets

FEATURE | Cooling by convection

AC POWER SUPPLY | Switching power supply, 85-264Vac

AC MAINS CONNECTOR | Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION | Over current and short circuit protection, thermal protection,

DC output protection and HF protection (amplifier)

CONSTRUCTION | 18mm birch plywood with textured polyurea coating

GRILLE | Custom perforated metal grille w/ acoustic foam

INSTALLATION / RIGGING / FLYING | Integrated rigging flyware

2 wood feet, 2 recessed side handles

Ø9.8mm ball pins w/ stainless steel lanyard with PVC

Prepared for castors

DIMENSIONS (WXDXH) | 540x740x520mm

21.26x29.13x20.47in

AC MAINS CONNECTOR | 56Kg

123.46lb
