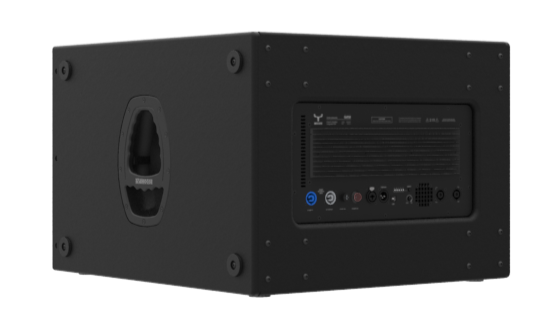

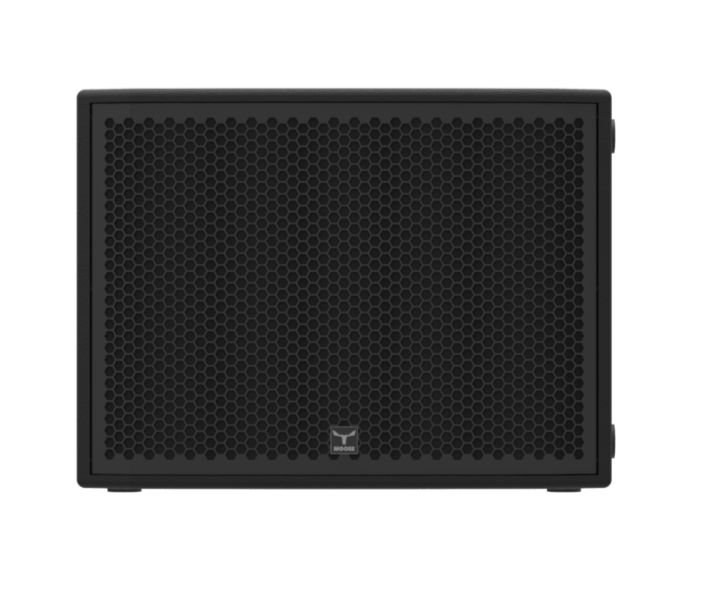

Moose G15A Active Subwoofer 15"

Bass reflex ACTIVE subwoofer

1x 15" (4in VC) LF EU transducer

Versatile, compact and coherent subwoofer

1400W class D, single channel amplifier

85-264Vac universal mains, all electronic protections

Fully programmable built-in DSP, 4 presets

Prepared for stacking and pole mount usage

Rugged and durable 18mm birch plywood construction

Powder coated custom perforated steel grille

Tech Specs

TYPE | Compact ACTIVE subwoofer

ENCLOSURE DESIGN | Reflex loaded

POWER OUTPUT (RMS) | 700W (AES)

1400W (Program)

2800W (Peak)

FREQUENCY RANGE | 32Hz - 250Hz

NOMINAL IMPEDANCE | N/A

TRANSDUCER TYPE | 1x 15" LF (4in VC) EU transducer

CROSSOVER FREQUENCY | DSP controlled with 4 selectable presets

48KHz sampling frequency

24 bit AD/DA converter

MAX. SPL (PEAK) | 130dB @ 1m

AMPLIFIER TYPE | Class D, single channel amplifier

AMPLIFIER OUTPUT | 1400W (continuous)

INPUT | XLR/Jack combo connector

OUTPUT | XLR/M3p connector

INDICATORS | Power, signal/preset, clip

CONTROLS | Master level control, 4 selectable presets

FEATURE | Cooling by convection

AC POWER SUPPLY | Switching power supply, 85-264Vac

AC MAINS CONNECTOR | Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION | Over current, short circuit, thermal protection

DC output protection and HF protection (amplifier)

CONSTRUCTION | 15/18mm birch plywood, textured polyurea coating

GRILLE | Custom perforated metal grille with acoustic foam

INSTALLATION / RIGGING / FLYING | 4 rubber feet, 2 side handles

Ø35mm pole mount socket

Prepared for stacking

DIMENSIONS (WXDXH) | 590x590x440mm

23.23x23.23x17.32in

WEIGHT | 38Kg

83.78lb
