Moose DSP26 Processor 2in 6out

Professional 2-input, 6-output system processor

All inputs and outputs XLR 3p balanced connectors

High-end 24-bit AD/DA, 48 kHz converters

Gain, Parametric EQ, Shelving Filters, Time Delay

Crossover Filters (Butterworth, Linkwitz-Riley, Bessel), Compression, Limiting

USB port and RS 485 for simple programming via PC

Friendly and intuitive control interface/app

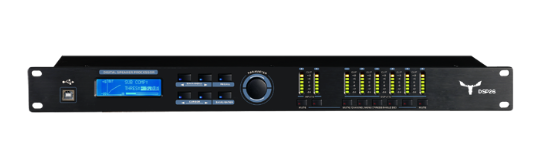

Convenient front-panel controls for parameter editing and input/output muting

30 user-defined internal presets storable

Switch mode power supply: 90V – 250V AC

Solid construction for 19” Rack - 1U lightweight enclosure

Tech Specs

TYPE | Professional audio system processor

INPUTS | 2 (two)

OUTPUTS | 6 (six)

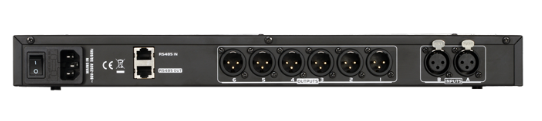

CONNECTORS | Input: XLR/F 3p balanced

Output: XLR/M 3p balanced

OTHER FEATURES | External: USB Type-B (USB1.1)

Ethernet: RS 485 in/out

OTHER FEATURES | Input impedance: 10kΩ

Output Impedance: 50Ω

OTHER FEATURES | Max input/output level: 19dBu

OTHER FEATURES | Input/output Gain: -40~12dB, 0,1dB step

Input/output Delay: 0ms~1s, step 21us

OTHER FEATURES | Input/output PEQ: 7-band parametric EQ (1 per channel)

OTHER FEATURES | EQ Gain: -30~15dB, step 0.1dB

EQ Type: PEQ, Low shelf, High shelf

EQ Frequency: 19.7~21.9kHz

EQ Banwith: PEQ 0.017~4.75 Oct

OTHER FEATURES | Crossover frequency: 19.7~21.9kHz

Crossover Slope: FLAT THRU, 12dB, 23dB, 36dB, 48dB

Crossover classification: Butterworth, Bessel, Linkwitz-Riley

Crossover Threshold: -20dB~+20dB, step 0.5dBu

OTHER FEATURES | Compressor ratio: 1.2,1.5, 2, 3, 4, 6, 10, 20, 40, 128:1

OTHER FEATURES | Attack time: 1~100ms,step 0.1ms

Release time: 50~1000ms, step 50ms

OTHER FEATURES | Dynamic Range: 116dB A Weighting

OTHER FEATURES | CMMR: > 50dB (30Hz~20kHz)

OTHER FEATURES | Crosstalk: < -100dB

OTHER FEATURES | Distortion: 0.003% (1kHz, 0dBu)

OTHER FEATURES | System preset: 10 appearances preset, 30 user programs

CONTROLS | Mains switch (on/off), MUTE push buttons

CONNECTORS | IEC 3p

OPERATION VOLTAGE | 90~250V AC SMPS, 50–60 Hz

DIMENSIONS (WXHXD) | 1RU space, 158mm depth (6.22in)

WEIGHT | 3.6Kg

7.94lb
