Moose DQ9600 4Channel Power Amplifier 4x2400W @4Ohm

High quality and reliable class D amplifier series

Classical PWM circuit design and new technology

4x 1300W @ 8ohm output power

4x 2400W @ 4ohm output power

XLR/F input connectors and Speakon 4p outputs

Modular design, no interference between channels

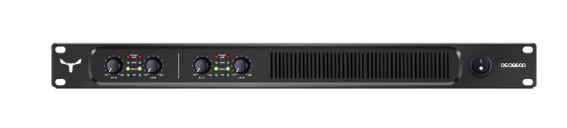

Front panel LEDs to monitor power, signal and clipping

Integrated protection circuitry to protect amplifier and speakers

Solid construction for 19” Rack - 1U lightweight enclosure

Tech Specs

TYPE | Professional class D power amplifier

NO. OF CHANNELS | 4

RMS POWER @ 8Ω / 1KHZ / 0.1% THD | 4x 1300W

RMS POWER @ 4Ω / 1KHZ / 0.1% THD | 4x 2400W

FREQUENCY RANGE | 20Hz - 20kHz, ±0.3dB

T.H.D. (20HZ - 20KHZ) | 800 (8Ω, 20Hz~200Hz)

CROSSTALK (20HZ - 20KHZ) | > 75dB

SIGNAL-TO-NOISE RATIO | > 105dB

INPUT SENSITIVITY | 20kΩ (balanced), 10kΩ (unbalanced)

CONTROLS | Mains switch (on/off), 4x volume

INDICATORS | Power on: Green; Signal: Green;

Clip/Protect: Red (1 per channel)

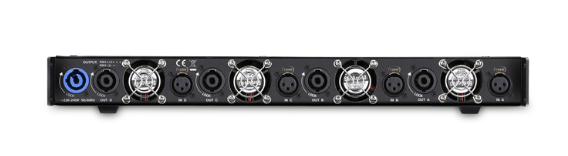

INPUTS | XLR/F 3p connectors

OUTPUTS | Speakon 4p connectors

CONNECTORS | PowerCON AC input

PROTECTIONS | Thermal overload, DC protection,

short circuit, clip limiter, temperature control

OPERATION VOLTAGE | 220~240V AC (factory configured), 50–60 Hz

POWER CONSUMPTION | 2000VA

COOLING | Continuous speed fan, automatic

DIMENSIONS (WXHXD) | 1RU space, 430mm depth (16.93in)

WEIGHT | 10.5Kg

23.15lb
