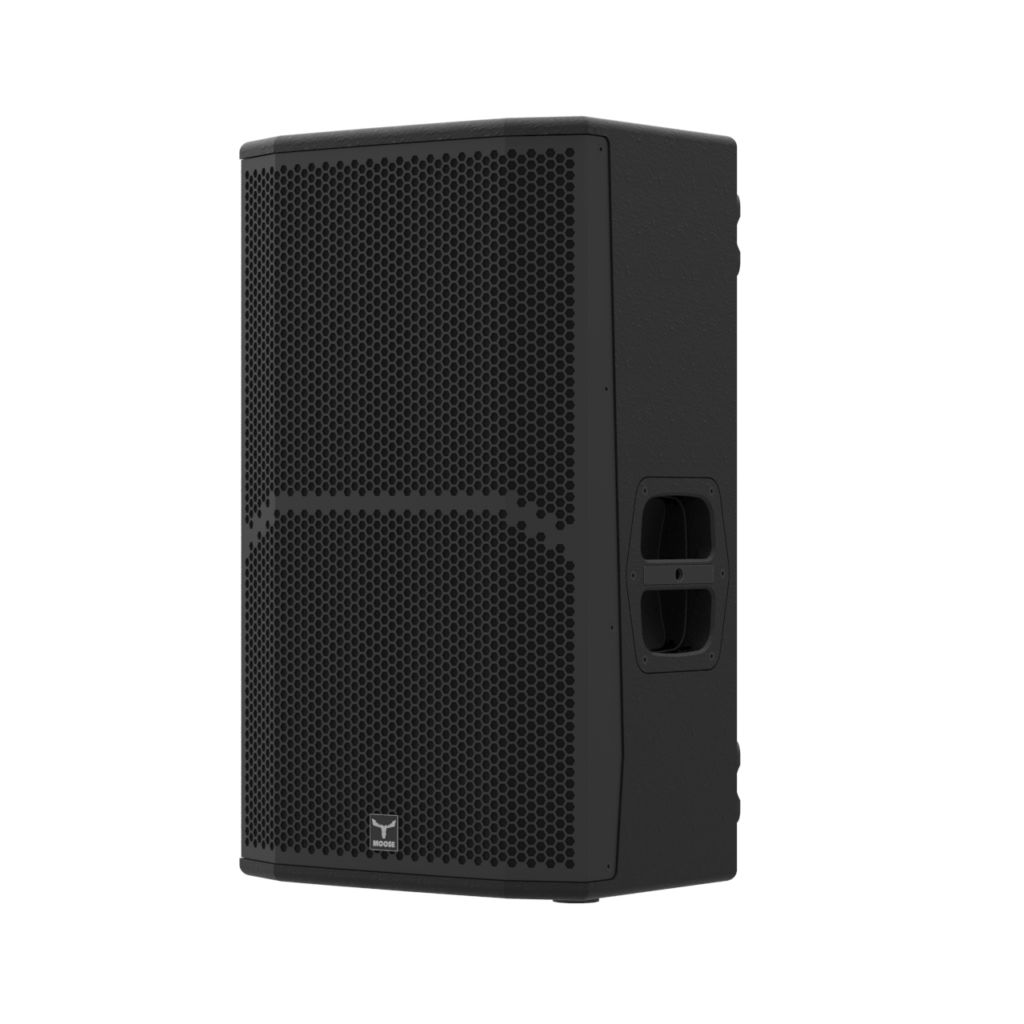

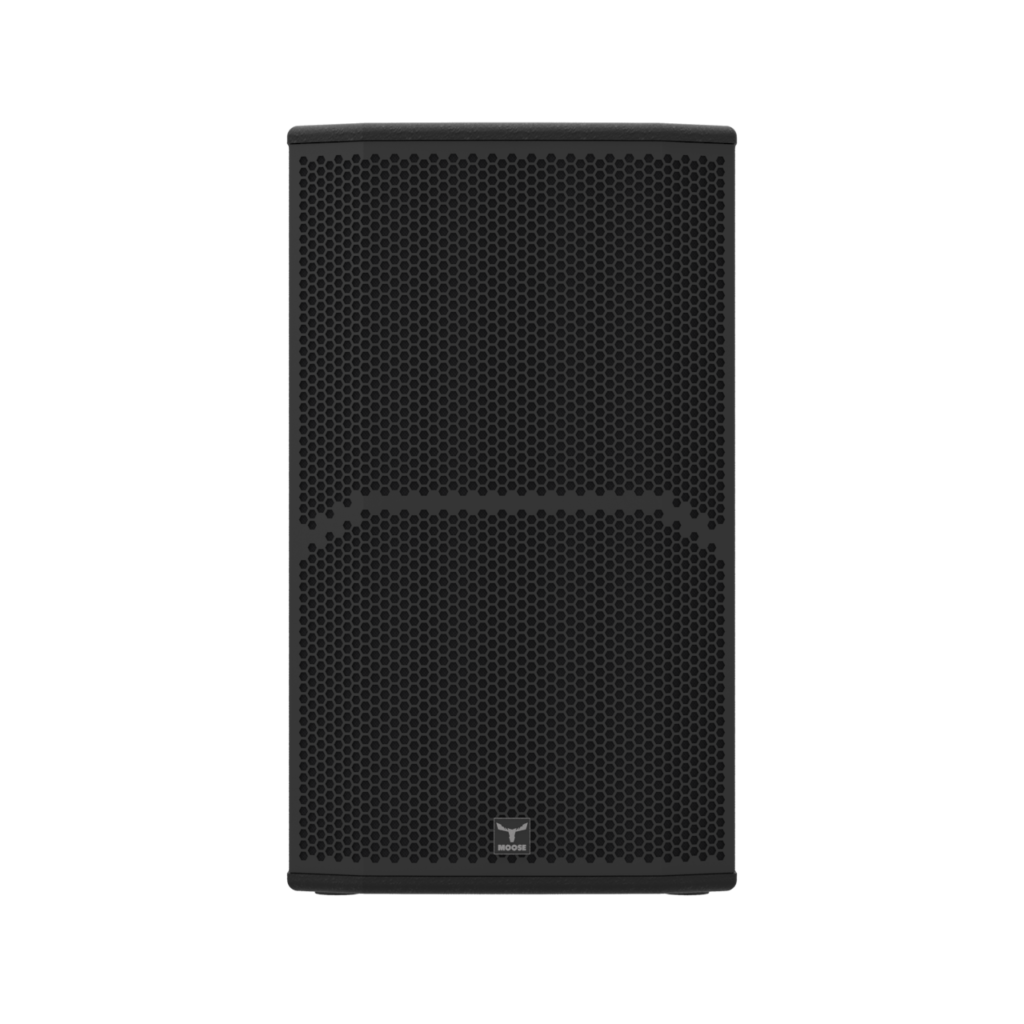

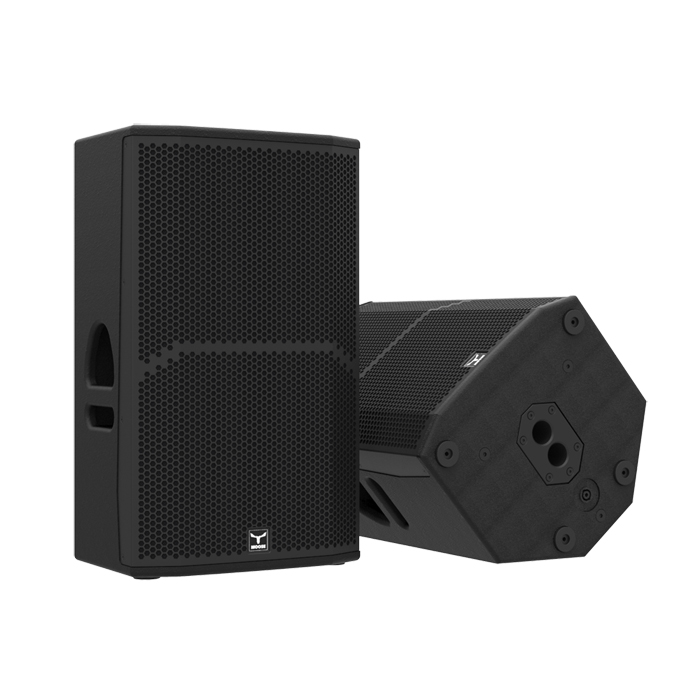

Moose DLP15 Passive Speaker 15"

Key Features

2-way multipurpose speaker

15” (3in VC) MB drivers with high power handling capabilities

1,4” (2.56in) Neodymiun high frequency driver

User-rotatable CD horn 90°x60° for ideal dispersion

Dual NL4 connectors in parallel + NL4MPR (for stage monitor)

Elegant, refined and compact design

Integrated rigging system, Ø35mm pole mount socket with 5° tilt

Rugged and durable 15mm birch plywood

Suited for FOH, High-end monitor, Frontfill systems

Expandable with subs for a powerful front PA

Tech Specs

TYPE | 2-Way passive multipurpose speaker

ENCLOSURE DESIGN | Bass reflex trapezoidal enclosure

POWER OUTPUT (RMS) | 500W (RMS)

780W (Program)

2000W (Peak)

FREQUENCY RANGE | 49Hz - 19kHz (+/-10dB)

NOMINAL IMPEDANCE | 8Ohm

TRANSDUCER TYPE | 15" MF (3in VC) EU transducer

1.4" Neodymium HF (2.56in VC) EU transducer

DISPERSION | CD horn, 90°x60° and 60°x90°

User-rotatable

CROSSOVER FREQUENCY | 1200Hz

MAX. SPL (PEAK) | 133dB @ 1m

INPUT SENSITIVITY | 97dB

CONNECTOR | 2x NL4 in parallel

1x NL4MPR for stage monitor

CONSTRUCTION | 15mm brich plywood, textured polyurea coating

GRILLE | Custom perforated metal grille with acoustic foam

INSTALLATION / RIGGING / FLYING | Ø35mm pole mount with 5° tilt

5x M8 flying points

DIMENSIONS (WXDXH) | 440x390x710mm

17.32x15.35x27.95in

WEIGHT | 31Kg

68.34lb
