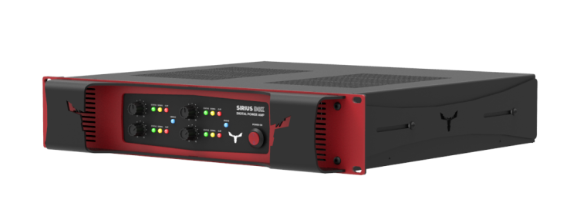

Moose D8K 4Channel Power Amplifier 4x2000W @4Ohm

Professional and powerful class D amp

High dynamic range and low distortion

4x 2000W / 4ohm high power channels

2x 3000W / 8ohm BRIDGE (BTL)

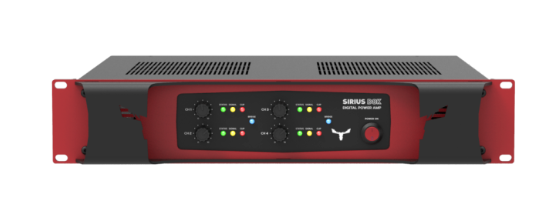

Status LEDs in front panel

Electronically balanced XLR inputs, Speakon outputs

Efficient forced-air cooling system

Fully self-protected for SMPS and channels

AC 100V - 240V, 50/60Hz Universal mains

Solid construction for 19” - 2U rack mount

Tech Specs

TYPE | Class D amplifier, Powersoft modules

NO. OF CHANNELS | 4

RMS POWER @ BRIDGE 8Ω | 2x 3000W - BTL

RMS POWER @ 4Ω / 1KHZ / 0.1% THD | 4x 2000W

GAIN | 38dB (x80 voltage gain)

SIGNAL-TO-NOISE RATIO | 112dB (A weighted)

T.H.D. (20HZ - 20KHZ) | 500 @ 100Hz

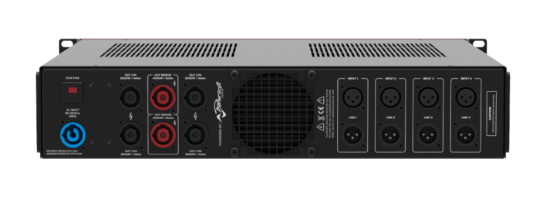

INPUTS | 4x XLR/F 3p

OUTPUTS | 4x XLR/M 3p - LINK

4x Speakon NL4

2x Speakon NL4 red - Bridge

INDICATORS | Status, Clip, Protect, Bridge

COOLING | Fan, variable speed, temperature controlled

PROTECTIONS | Extensive protection circuitry: power limiters, thermmal shutdown

Short circuit, overload and clip limiter

Temperature protection of transformer & heat-sinks

POWER CONSUMPTION | Regulated SMPS with PFC

OPERATION VOLTAGE | AC 100V - 240V, 50/60Hz

CONNECTORS | Neutrik powerCON in

OTHER FEATURES | Rugged and solid steel construction, AL front panel

OTHER FEATURES | Electrostatic black powder coating

DIMENSIONS (WXHXD) | 2RU - Rack 19"

410mm depth

WEIGHT | 18Kg

39.68lb
