Moose D4K 2 Channel Power Amplifier 2x2000W @4Ohm

Professional and powerful class D amp

High dynamic range and low distortion

2x 1600W / 4ohm high power channels

1x 3200W / 8ohm BRIDGE

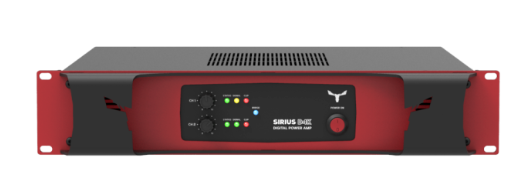

Status LEDs in front panel

Electronically balanced XLR inputs, Speakon outputs

Efficient forced-air cooling system

Fully self-protected for SMPS and channels

AC 90V - 264V, 50/60Hz Universal mains

Solid construction for 19” - 2U rack mount

Tech Specs

TYPE | Class D amplifier, Powersoft modules

NO. OF CHANNELS | 2

RMS POWER @ 8Ω / 1KHZ / 0.1% THD | 3200W - BRIDGE

RMS POWER @ 4Ω / 1KHZ / 0.1% THD | 2x 1600W

GAIN | 32dB (x40 voltage gain)

SIGNAL-TO-NOISE RATIO | 115dB (A weighted)

T.H.D. (20HZ - 20KHZ) | 500 @ 100Hz

OTHER FEATURES | Input Impedance, 10kohm balanced

INPUT SENSITIVITY | 2.7 V / +10.8 dBu @ 32 dB gain

INPUTS | Neutrik XLR/F 3p, input/thru

OUTPUTS | Neutrik NL4 speakon

Neutrik NL4 red - Bridge

INDICATORS | Status, Clip, Protect, Bridge

COOLING | Fan, variable speed, temperature controlled

PROTECTIONS | Extensive protection circuitry: power limiters, thermmal shutdown

Short circuit, overload and clip limiter

Temperature protection of transformer & heat-sinks

POWER CONSUMPTION | Regulated SMPS with PFC

600VA (rated load, 1/8 max. power @ 8ohm)

OPERATION VOLTAGE | 90 - 264V DC, 50/60Hz

CONNECTORS | Neutrik powerCON in

OTHER FEATURES | Rugged and solid steel construction

AL front panel

OTHER FEATURES | Electrostatic black powder coating

DIMENSIONS (WXHXD) | 2RU - Rack 19"

410mm depth

WEIGHT | 9Kg

19.84lb
