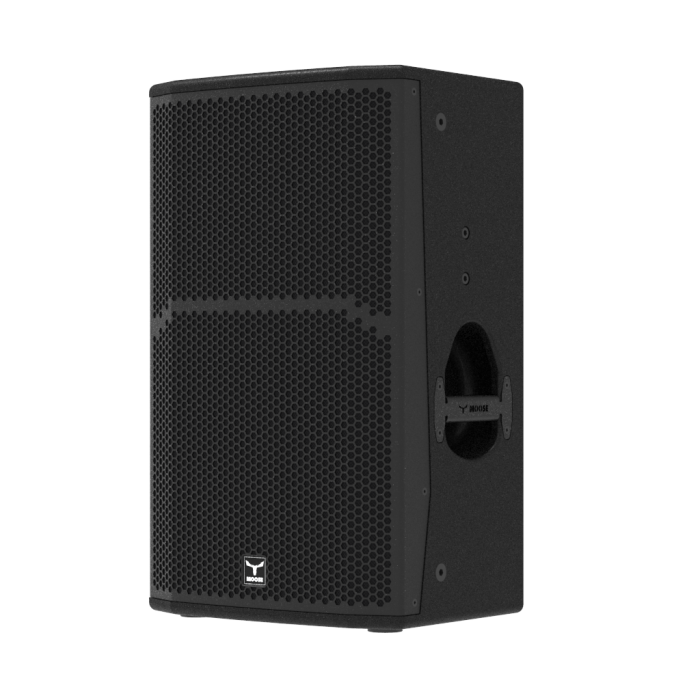

Moose C15A Aktif Hoparlör 15"

Multipurpose 2-way active speaker

Bass reflex trapezoidal enclosure

15" (2.5in VC) MF + 1" (1.73in VC) HF European transducers

User-rotatable CD horn 90°x60° for ideal dispersion

Driven by a Class D, 2 channel amplifier

Fully programmable DSP, 4 selectable presets

Universal mains 85-264Vac

Built-in Electronic protections for safe operation

Integrated rigging system with 3x M10 inserts

Rugged and durable 15mm birch plywood

Tech Specs

TYPE | 2-Way active speaker

ENCLOSURE DESIGN | Bass reflex trapezoidal enclosure

POWER OUTPUT (RMS) | 410W (RMS)

560W (Program)

1100W (Peak)

FREQUENCY RANGE | 50Hz - 18kHz

TRANSDUCER TYPE | 15" MF (2.5in VC) EU transducer

1" HF (1.73in VC) EU transducer

DISPERSION | CD horn, 90°x60° and 60°x90°

User-rotatable

CROSSOVER FREQUENCY | DSP controlled with selectable presets

48KHz sampling frequency

24 bit AD/DA converter

MAX. SPL (PEAK) | 129dB @ 1m

AMPLIFIER TYPE | Class D, 2 channel amplifier

AMPLIFIER OUTPUT | 800W + 400W (continuous)

1500W (peak)

INPUT | XLR/jack combo connector

OUTPUT | XLR/M 3p

INDICATORS | Power, signal/preset, clip

CONTROLS | Master level control, 4 selectable presets

FEATURE | Cooling by convection

AC POWER SUPPLY | Switching power supply, 85-264Vac

AC MAINS CONNECTOR | Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION | Over current and short circuit protection, thermal protection,

DC output protection and HF protection (amplifier)

CONSTRUCTION | 15mm birch plywood, textured polyurea coating

GRILLE | Custom perforated metal grille with acoustic foam

INSTALLATION / RIGGING / FLYING | Ø35mm pole mount socket

3x M10 flying points

"U" bracket for horizontal and vertical installation

DIMENSIONS (WXDXH) | 430x420x690mm

16.93x16.54x27.17in

WEIGHT | 25Kg

55.16lb
