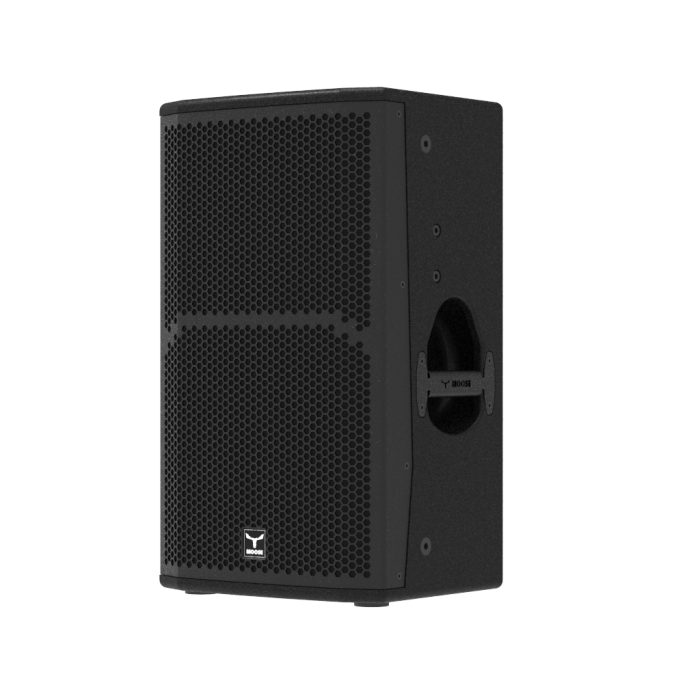

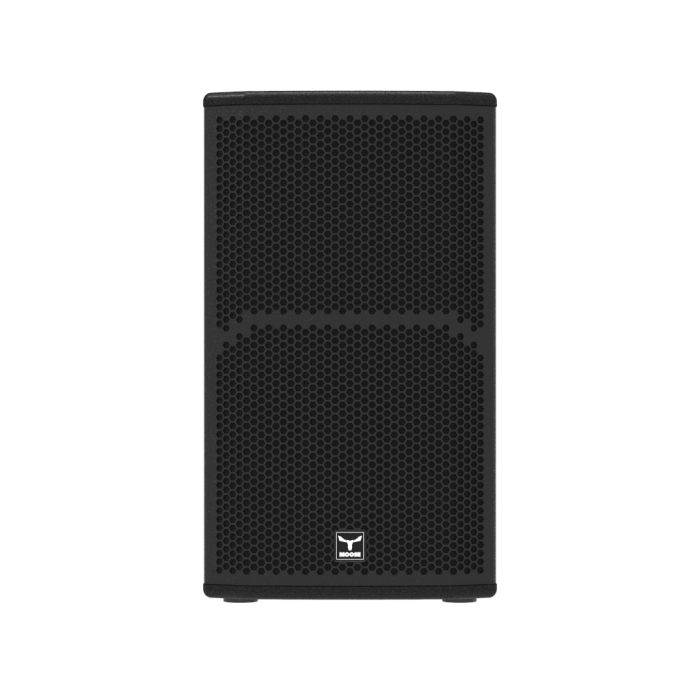

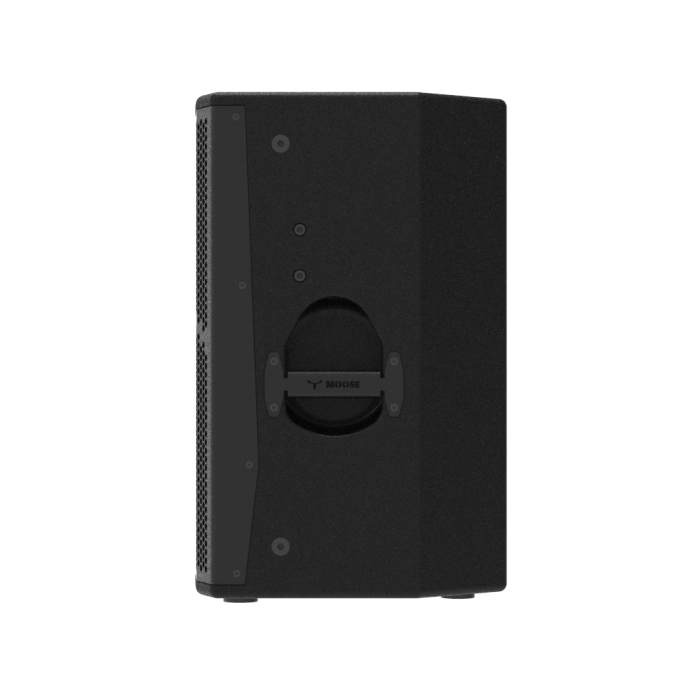

Moose C10 Pasif Hoparlör 10"

Multipurpose 2-way passive speaker

Bass reflex trapezoidal enclosure

10" (2in VC) MF + 1" (1.73in VC) HF EU transducers

2x NL4 connected in parallel

User-rotatable CD horn 90°x60° for ideal dispersion

Ø35mm pole mount with 0° and 5° tilt

Integrated rigging system with 3x M10 inserts

Rugged and durable 15mm birch plywood

Powder coated custom perforated steel grille

Tech Specs

TYPE | 2-Way passive loudspeaker

ENCLOSURE DESIGN | Bass reflex trapezoidal

POWER OUTPUT (RMS) | 360W (EMS)

720W (Program)

1400W (Peak)

FREQUENCY RANGE | 75Hz - 18kHz

NOMINAL IMPEDANCE | 8Ohm

TRANSDUCER TYPE | 10" MF (2in VC) EU transducer

1" HF (1.73in VC) EU transducer

DISPERSION | CD horn, 90°x60° and 60°x90°

User-rotatable

CROSSOVER FREQUENCY | 2000Hz

MAX. SPL (PEAK) | 125dB @ 1m

INPUT SENSITIVITY | 93dB

CONNECTOR | 2x NL4 in parallel

CONSTRUCTION | 15mm birch plywood, textured polyurea coating

GRILLE | Custom perforated metal grille with acoustic foam

INSTALLATION / RIGGING / FLYING | Ø35mm pole mount with 0° and 5° tilt

3x M8 flying points

"U" bracket for horizontal and vertical installation

DIMENSIONS (WXDXH) | 320x350x550mm

12.60x13.78x21.65in

WEIGHT | 18Kg

39.68lb
