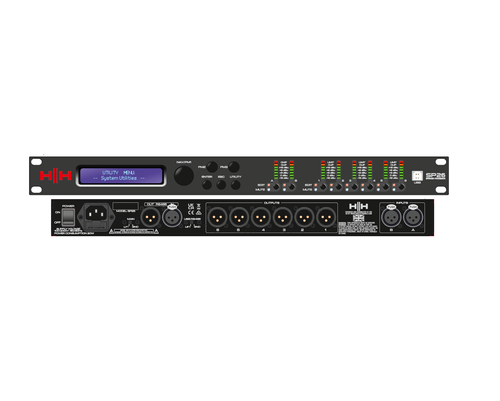

HH Audio - SP26 Loudspeaker Processor 2 in 6 out

Yüksek performanslı 2 giriş 6 çıkışlı processor Yüksek dinamik aralık Uygun ön panel kontrolleri veya uzaktan çalıştırma Üniversal şebeke gerilimi çalışması AudioInputs Two Electronically Balanced XLR InputsOutputs Six Electronically Balanced XLR InputsMinimum Load 150 OhmsTHD%N 0.001% at 1kHz 0dBuS/N >106dBAFrequency Response 20Hz-20kHz; -0.5dBy at 20Hz and 20kHzAD/DA Converters 24bit, 48kHzGeneralPresets 48 user presets (16 pre-loaded TNA examples, may be erased)Other Audio Ground Lift switch, USB/RS485 ground lift switchRemote RS485 in/out XLR connectors for remote monitoringDSPDSP Engine DSP, 24bit (data) x 96 bit (coeff.)DSP Resolution 24bit (data) x 24 bit (coeff.), 54 bit accregisters. 96 bit precision on intermediate processing dataParametric Equalisation 11 filters per input,7 filters per outputFilter Type Bell, ShelvingFilter Gain From -12dBu up to +12dBu by 0.5dBu resolution stepsCentre Frequency from 20Hz up to 20kHz with 1Hz resolution stepsFilter Q/BW Q from 0.4 up to 128Input Gain From -12dB to +12dB by 0.1dBu resolution steps;Output Gain From -18dB to +12dB by 0.1dBu resolution steps;Crossover Section HPF/LPF Butterworth 6/12/18/24/36/48 dB per octave. Bessel 12/24 dB per octave. Linkwitz-Riley 12/24/36/48 dB per octaveInternal Noise Generator White/ Pink Noise; Level from -30dBu to 0dBuInput Noise Gate Threshold from -90dBu up to -60dBu. Attack time from 1ms up to 1000ms;Release time from 10ms up to 1000msInput RMS CompressorThreshold from -14dBu up to +16dBu and Bypass. Ratio 2:1~100:1; Knee: 0% ~ 100%. Attack time from 5ms up to 200ms;Release time from 0.1 secup to 3 secOutput RMS CompressorThreshold from -14dBu up to +16dBu and Bypass. Ration 2:1~100:1; Knee: 0% ~ 100%. Attack time from 5ms up to 200ms;Release time from 0.1sec up to 3 secOutput Peak Limiter Threshold from -14dBu up to +16dBu and Bypass. Attack time from 5ms up to 200ms;Release time from 0.1 sec up to 3 sec.DLFInput: Boost Filter from 0% to 100%;Frequency from 20Hz to 20kHz. Output(Only for output 1,3,5): Attenuation Filter from 0dBu to -6dBu;Frequency. 20Hz to 1kHz Q from 1 to 9.9 step 0.1Delay 900 ms 10.4us increment/decrement steps per input channel. 340 ms 10.4us increment/decrement steps per output channelResidual Noise <-90dBuPower RequirementsAC Power Universal voltage 100V-240V~ 50/60Hz, three pin IEC socketAC Power Consumption <30WSizesUnit dimensions (HWD) 44 x 483 x 229mm, 1.7" x 19" x 9"Unit weight 3.5Kg, 7.7 lbsCarton dimensions (HWD) 9 x 53 x 30CM, 3.5" x 20.9" x 11.8", 0.014 M3Packed weight 4.5Kg, 9.9 lbsEAN 5060109457957
