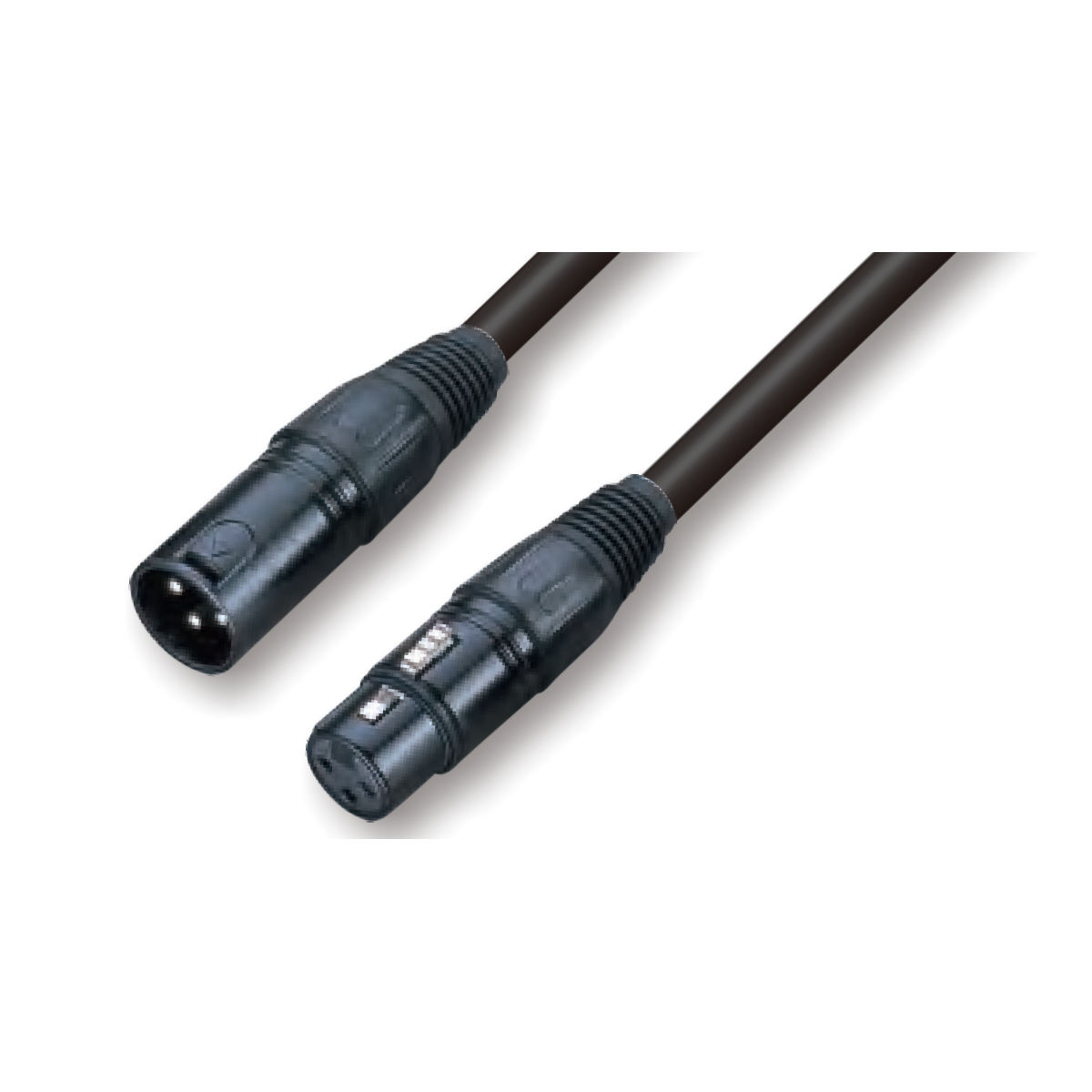

Centolight CL-XLR3DMX-1.5 1,5 m, 3 pin XLR DMX kablosu

Ürün açıklaması

Teknik özellikler

• Connector: XLR 3 PIN
• PVC diameter: 6.5 mm
• No. of inner conductors: 2x0.34 mm²
• Copper strand per conductor: 7x0.25 mm
• Conductor insulation: PE 1.70 mm

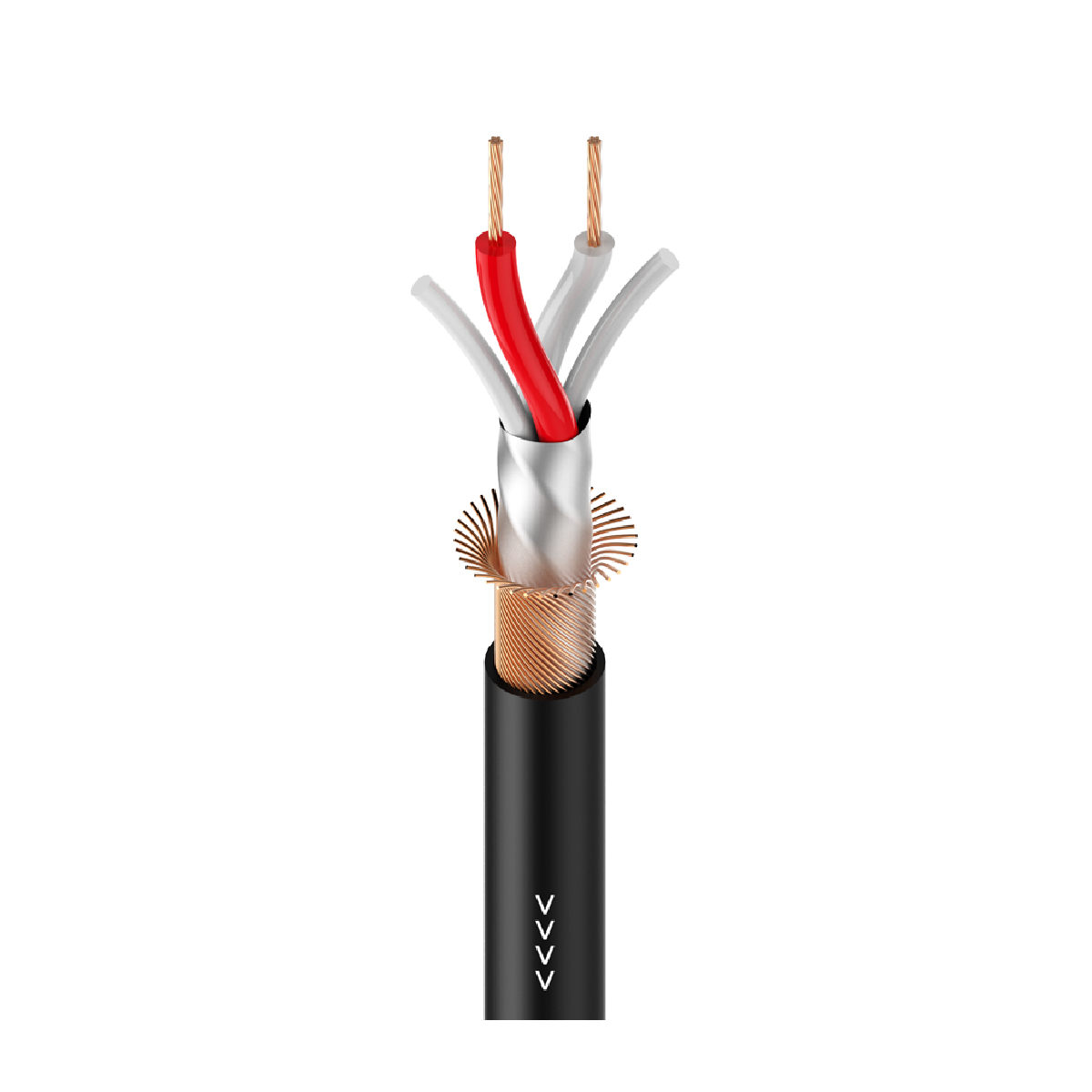

• Shielding: copper spiral shielding with 80 x 0.10 mm + AL/PT-foil + PE filter
• Shielding factor: 100%
• Capac. cond./cond. per 1 m: 52 pF
• Capac. cond./shield. per 1 m: 105 pF
• Cond. resistance per 1 m: 55 mΩ
• Shield. resistance per 1 m: 27 mΩ
